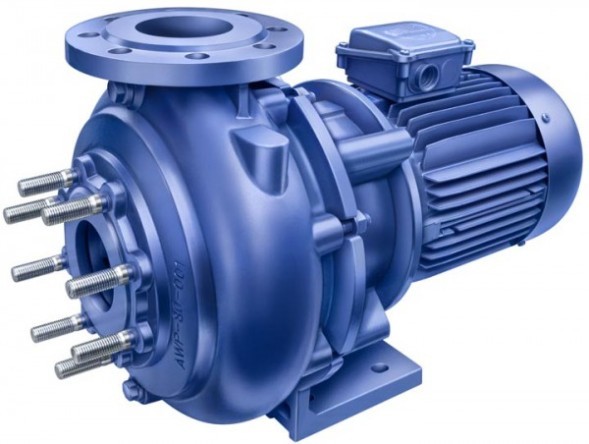

Centrifugal pumps of the series AWP from the company Pumping bacon They were designed specifically for operation as part of sewage installations, providing supply and circulation of wastewater including pollution. Single-stage configuration, monoblock mounting, horizontal orientation of the installation. The supply pipe is located radially upwards with respect to the axis of rotation, the suction is coaxial.
In the standard version, cast iron is used as the material of the pump body and impeller, the shaft is made of corrosion-resistant steel and sealed with a mechanical seal (carbon/silicon carbide). Other versions are available on request. The drive unit consists of highly efficient three-phase electric motors with surface cooling and protection against penetration of water and dust.
Pumping liquids: waste water.
Limitations: aggressive agents.
Areas of application: sewage treatment plants, sewage systems, pool flushing.
Technical characteristics of Speck Pumpen sewage pumps of the AWP series
- Volume consumption: up to 250 m3/hour;
- Discharge height: up to 45 m;
- Pipe diameter: 50, 80 mm;
- Liquid temperature: up to 120 °C;
- Installation: dry, horizontal, block.
Standard sizes of Speck Pumpen pumps of the AWP series
standard version (two-channel impeller): AWP 25-125, AWP 50-160, AWP 80-200, AWP 100-200, AWP 80-315
vortex impeller: AWP-F 25-125, AWP-F 50-160, AWP-F 80-200, AWP-F 100-200, AWP-F 80-315
open type impeller with cutting blades: AWP-C-F 25-125, AWP-C-F 50-160, AWP-C-F 80-200, AWP-C-F 100-200, AWP-C-F 80-315
You can buy Speck Pumpen sewage pumps of the AWP series, find out the price and more information about the products by contacting our specialists.
