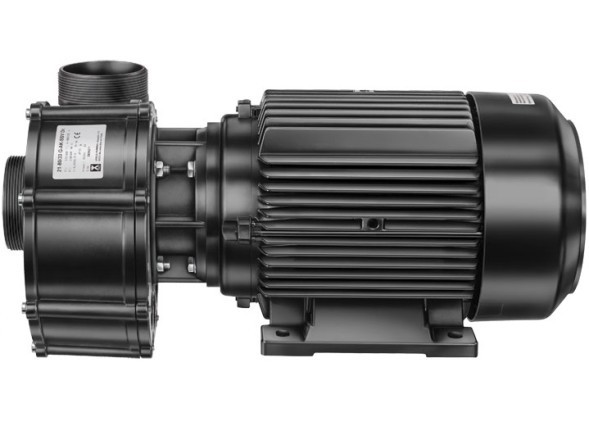

Single-channel centrifugal pumps of the series BADU 21-80 AK from the company Pumping bacon Made of high-quality plastic, which makes them immune to corrosion processes, they can be used to pump more complex media than the standard range. Monoblock design of the structure, horizontal and vertical (pump block down) orientation, the suction nozzle is located coaxially to the drive, the feed is directed radially upwards with respect to the axis of rotation. There is a self-priming version of the execution.
Reliable and durable design, high-performance AC motors are installed as the drive, there are variations powered by single-phase and three-phase mains. The motor is protected from moisture and dust (IP55 class), operating speed up to 3000 rpm. The pump body is made of polyphenylene ether (30% fiberglass), the impeller is made of polypropylene or polyoxymethylene (for the impeller) reinforced with fiberglass (30%). The shaft is made of stainless steel and sealed with a mechanical (mechanical) seal, the material is carbon/ceramic/nitrile rubber.
Pumping liquids: water, solutions.
Limitations: the absence of abrasive particles, the influence of aggressive agents.
Areas of application: swimming pools, water purification systems, water supply, entertainment industry and others.
Technical characteristics of Speck Pumpen centrifugal pumps of the BADU 21-80 AK series
- Volume consumption: up to 90 m3/hour;
- Discharge height: up to 17 m;
- Diameter of the suction pipe: 110 - 140 mm;
- Diameter of the pressure nozzle: 110 mm;
- Liquid temperature: up to 40 °C (up to 60 °C).
- Installation: horizontal /vertical.
Overall standard sizes of Speck Pumpen BADU pumps 21-80 AK
BADU 21-80/31 RG/-AK
BADU 21-80/32 RG/-AK
BADU 21-80/32 G/-AK
BADU 21-80/33 G/-AK
BADU 21-80/34 G/-AK
You can buy Speck Pumpen plastic pumps of the BADU 21-80 AK series, find out the price and more information about the products by contacting our specialists.
