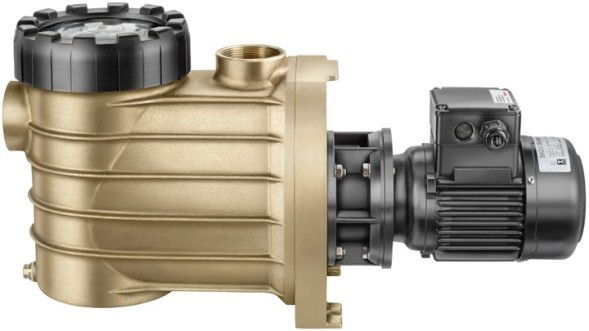

Single-channel centrifugal pumps with built-in premium filter BADU Bronze from the company Pumping bacon They combine high-quality metal and plastic elements, they are resistant to corrosion processes and can be used for pumping more complex media than the standard line. Monoblock design of the structure, horizontal orientation, the suction nozzle is located coaxially to the drive, the feed is directed radially upwards with respect to the axis of rotation.
Reliable and durable design, high-performance AC motors are installed as the drive, powered by a single-phase or three-phase network. The motor is protected from moisture and dust (IP55 class), operating speed up to 3000 rpm. The pump body is made of tin bronze, the impeller is made of polypropylene reinforced with fiberglass (30%). The shaft is made of stainless steel and sealed with a mechanical (mechanical) seal, the material is carbon/ceramic/nitrile rubber.
Pumping liquids: water, solutions.
Limitations: no abrasive particles, aggressive agents.
Areas of application: pools.
Technical characteristics of Speck Pumpen BADU Bronze /AK centrifugal pumps
- Volume consumption: up to 30 m3/hour;
- Discharge height: up to 18.5 m;
- Diameter of the suction pipe: 50 - 75 mm;
- Diameter of the pressure nozzle: 50 - 63 mm;
- Liquid temperature: up to 40 °C (60 °C).
Overall standard sizes of Speck Pumpen BADU Bronze /AK pumps
BADU Bronze 7 /AK
BADU Bronze 11 /AK
BADU Bronze 14 /AK
BADU Bronze 22 /AK
BADU Bronze 25 /AK
BADU Bronze 30 /AK
You can buy Speck Pumpen BADU Bronze AK centrifugal pumps, find out the price and more information about the products by contacting our specialists.
