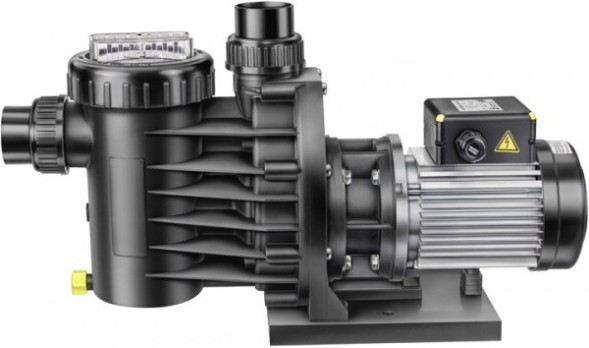

Single channel centrifugal pumps with integrated filter BADU Magic II /-AK from the company Pumping bacon Made of high-quality plastic, which makes them immune to corrosion processes, they can be used to pump more complex media than the standard range. Monoblock design of the structure, horizontal orientation, the suction nozzle is located coaxially to the drive, the feed is directed radially upwards with respect to the axis of rotation.
Reliable and durable design, high-performance AC motors are installed as the drive, powered by a single-phase network. The motor is protected from moisture and dust (IP55 class), operating speed up to 3000 rpm. The pump body is made of polypropylene, the impeller is made of polyamide-66 reinforced with fiberglass (30%). The shaft is made of stainless steel and sealed with a mechanical (mechanical) seal, the material is carbon/ceramic/nitrile rubber.
Pumping liquids: water, solutions.
Limitations: the absence of abrasive particles, the influence of aggressive agents.
Areas of application: pools.
Technical characteristics of Speck Pumpen BADU Magic II /-AK centrifugal pumps
- Volume consumption: up to 15 m3/hour;
- Discharge height: up to 14 m;
- Diameter of the suction pipe: 50 mm;
- Diameter of the pressure nozzle: 40, 50 mm;
- Liquid temperature: up to 40 °C (60 °C);
- Installation: horizontal.
Overall standard sizes of Speck Pumpen BADU Magic II /-AK pumps
BADU Magic II/4 /-AK
BADU Magic II/6 /-AK
BADU Magic II/8 /-AK
BADU Magic II/11 /-AK
You can buy Speck Pumpen BADU Magic II /-AK plastic pumps, find out the price and more information about the products by contacting our specialists.
