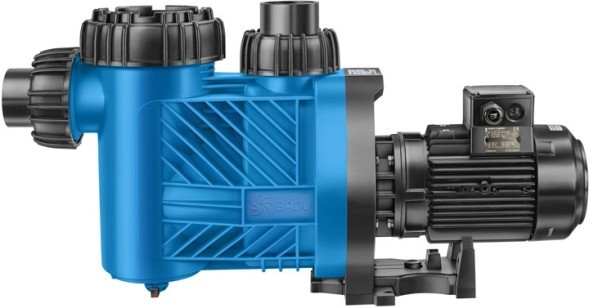

Single channel centrifugal pumps with built-in premium filter BADU Prime /-AK from the company Pumping bacon Made of high-quality plastic, which makes them immune to corrosion processes, they can be used to pump more complex media than the standard range. Monoblock design of the structure, horizontal orientation, the suction nozzle is located coaxially to the drive, the feed is directed radially upwards with respect to the axis of rotation.
Reliable and durable construction, high-performance AC motors, power supply versions for single-phase and three-phase networks are installed as the drive. The motor is protected from moisture and dust (IP55 class), operating speed up to 3000 rpm. The pump body and impeller are made of polypropylene reinforced with fiberglass (30%), polypropylene filled with talc (40%) is used for the inner frame. The shaft is made of stainless steel and sealed with a mechanical (mechanical) seal, the material is carbon/ceramic/nitrile rubber.
Pumping liquids: water, solutions.
Limitations: no abrasive particles, aggressive agents.
Areas of application: pools.
Technical characteristics of Speck Pumpen BADU Prime centrifugal pumps /-AK
- Volume consumption: up to 50 m3/hour;
- Discharge height: up to 22 m;
- Diameter of the suction pipe: 50, 63 mm;
- Diameter of the pressure nozzle: 50, 63 mm;
- Liquid temperature: up to 40 °C (60 °C).
- Installation: horizontal.
Overall standard sizes of Speck Pumpen BADU Prime pumps /-AK
BADU Prime 11-AK-SSV
BADU Prime13-AK-SSV
BADU Prime 15-AK-SSV
BADU Prime 20-AK-SSV
BADU Prime 30-AK-SSV
BADU Prime 40-AK-SSV
BADU Prime 48-AK-SSV
You can buy Speck Pumpen BADU Prime /-AK plastic pumps, find out the price and more information about the products by contacting our specialists.
