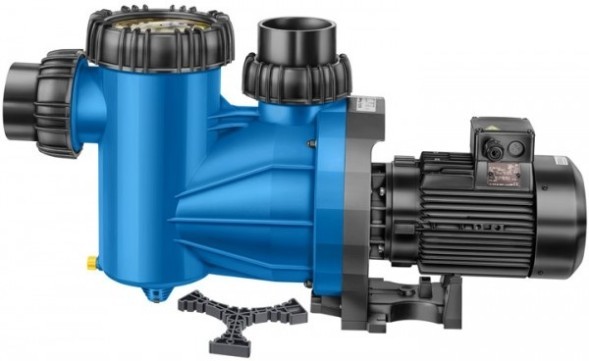

Single-channel centrifugal pumps with built-in premium filter BADU Resort /-AK from the company Pumping bacon Made of high-quality plastic, which makes them immune to corrosion processes, they can be used to pump more complex media than the standard range. Monoblock design of the structure, horizontal orientation, the suction nozzle is located coaxially to the drive, the feed is directed radially upwards with respect to the axis of rotation.
Reliable and durable design, high-performance AC motors are installed as the drive, powered by a three-phase network (400, 690 V). The motor is protected from moisture and dust (IP55 class), operating speed up to 3000 rpm. The pump body and impeller are made of polypropylene reinforced with fiberglass (30%), polypropylene filled with talc (40%) is used for the inner frame. The shaft is made of stainless steel and sealed with a mechanical (mechanical) seal, the material is carbon/ceramic/nitrile rubber.
Pumping liquids: water, solutions.
Limitations: no abrasive particles, aggressive agents.
Areas of application: pools.
Technical characteristics of Speck Pumpen BADU Resort centrifugal pumps /-AK
- Volume consumption: up to 120 m3/hour;
- Discharge height: up to 24 m;
- Diameter of the suction pipe: 75 - 160 mm;
- Diameter of the pressure nozzle: 75 - 140 mm;
- Liquid temperature: up to 40 °C (60 °C).
Overall standard sizes of Speck Pumpen BADU Resort pumps /-AK
BADU Prime 30-AK-SSV
BADU Prime 40-AK-SSV
BADU Prime 45-AK-SSV
BADU Prime 50-AK-SSV
BADU Prime 55-AK-SSV
BADU Prime 60-AK-SSV
BADU Prime 70-AK-SSV
BADU Prime 80-AK-SSV
You can buy Speck Pumpen BADU Resort /-AK plastic pumps, find out the price and more information about the products by contacting our specialists.
