Self-priming centrifugal pumps of the series BCM 40 /A from the company Pumping bacon They are made of high-quality plastic and are capable of working not only with neutral media, but also with aggressive liquids of acid and alkaline nature. Monoblock architecture design to save space, single-stage, one channel for pumping. The suction nozzle is located coaxially to the drive, the supply is directed radially upwards with respect to the axis of rotation.
The pump body and impeller are made of glass fiber reinforced polypropylene (30%). The shaft is made of stainless steel and sealed with a magnetic coupling, sealing materials - Ethylene propylene rubber (EPDM) or Viton brand fluoro rubber. Very robust construction, the drive unit is represented by high-performance AC motors, single- and three-phase power supply. The electric motor has a high class of protection against moisture and dust, operating speed up to 3000 rpm.
Pumping liquids: water, solutions, acids, alkalis.
Limitations: no abrasive particles.
Areas of application: water purification, plastic industry, rubber production, food industry, laboratory installations and other technological fields and processes.

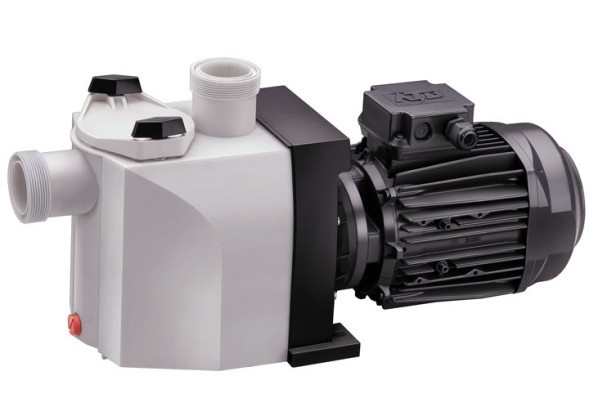

Technical characteristics of Speck Pumpen BCM 40/A centrifugal pumps
- Volume consumption: up to 13 m3/hour;
- Discharge height: up to 15 m;
- Diameter of the suction pipe: 50 mm;
- Diameter of the pressure nozzle: 50 mm;
- Liquid temperature: up to 60 °C.
Overall standard sizes of Speck Pumpen pumps BCM 40 /A
BCM 40/1 A, BCM 40/2 A, BCM 40/3 A
You can buy Speck Pumpen BCM 40 /A plastic pumps, find out the price and more information about the products by contacting our specialists.
