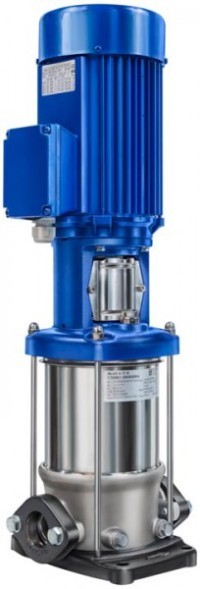

Multistage centrifugal pumps of the series IN-VB from the company Pumping bacon Characterized by high performance and exceptional reliability in operation, they are suitable for use in a wide range of industry areas. The vertical orientation of the installation allows you to save space, the inlet and outlet pipes are located on the same axis.
All parts of the pump in contact with the pumped medium are made of stainless steel grades AISI 304 and AISI 316 L. The shaft is protected by a mechanical seal, and wear-resistant ceramic bearings are installed. Three-phase electric motors of the IE3 (premium) energy efficiency class are used for the drive, with surface cooling and IP55 protection against penetration of water and dust.
Pumping liquids: water, solutions (moderately aggressive).
Limitations: no abrasive particles, contact with chemically aggressive agents.
Areas of application: water supply, water treatment, fire extinguishing systems, irrigation equipment, cooling installations and others.
Technical characteristics of Speck Pumpen centrifugal pumps of the IN-VB series
- Volume consumption: up to 160 m3/hour;
- Discharge height: up to 250 m;
- Nominal pressure (PN): up to 25 bar;
- Liquid temperature: from -15 to 100 °C;
- Installation: vertical.
Overall standard sizes of Speck Pumpen pumps of the IN-VB series
IN-VB 2-20, IN-VB 2-30, IN-VB 2-40, IN-VB 2-50, IN-VB 2-60, IN-VB 2-70, IN-VB 2-80, IN-VB 2-90, IN-VB 2-100, IN-VB 2-110, IN-VB 2-120, IN-VB 2-140, IN-VB 2-160, IN-VB 2-180, IN-VB 2-200, IN-VB 2-220 F, IN-VB 2-240 F, IN-VB 2-260 F, IN-VB 2-280 F, IN-VB 2-300 F
IN-VB 4-20, IN-VB 4-30, IN-VB 4-40, IN-VB 4-50, IN-VB 4-60, IN-VB 4-70, IN-VB 4-80, IN-VB 4-90, IN-VB 4-100, IN-VB 4-110, IN-VB 4-120, IN-VB 4-140, IN-VB 4-160, IN-VB 4-180 F, IN-VB 4-200 F, IN-VB 4-220 F, IN-VB 4-240 F, IN-VB 4-260 F
IN-VB 6-20, IN-VB 6-30, IN-VB 6-40, IN-VB 6-50, IN-VB 6-60, IN-VB 6-70, IN-VB 6-80, IN-VB 6-90, IN-VB 6-100, IN-VB 6-110, IN-VB 6-120, IN-VB 6-140, IN-VB 6-160, IN-VB 6-180 F, IN-VB 6-200 F, IN-VB 6-220 F, IN-VB 6-240 F, IN-VB 6-260 F
IN-VB 10-10, IN-VB 10-20, IN-VB 10-30, IN-VB 10-40, IN-VB 10-50, IN-VB 10-60, IN-VB 10-70, IN-VB 10-80, IN-VB 10-90, IN-VB 10-100, IN-VB 10-110, IN-VB 10-130, IN-VB 10-150 F, IN-VB 10-170 F, IN-VB 10-190 F, IN-VB 10-210 F
IN-VB 15-10, IN-VB 15-20, IN-VB 15-30, IN-VB 15-40, IN-VB 15-50, IN-VB 15-60, IN-VB 15-70, IN-VB 15-80, IN-VB 15-90, IN-VB 15-100, IN-VB 15-110, IN-VB 15-130, IN-VB 15-150, IN-VB 15-170
IN-VB 25-10, IN-VB 25-20, IN-VB 25-30, IN-VB 25-40, IN-VB 25-50, IN-VB 25-60, IN-VB 25-70, IN-VB 25-80, IN-VB 25-90, IN-VB 25-100, IN-VB 25-110, IN-VB 25-120
IN-VB 40-10-1, IN-VB 40-10, IN-VB 40-20-2, IN-VB 40-20, IN-VB 40-30-2, IN-VB 40-30, IN-VB 40-40-2, IN-VB 40-40, IN-VB 40-50-2, IN-VB 40-50, IN-VB 40-60-2, IN-VB 40-60, IN-VB 40-70-2, IN-VB 40-70, IN-VB 40-80-2, IN-VB 40-80, IN-VB 40-90-2, IN-VB 40-90, IN-VB 40-100-2, IN-VB 40-100
IN-VB 60-10-1, IN-VB 60-10, IN-VB 60-20-2, IN-VB 60-20, IN-VB 60-30-2, IN-VB 60-30, IN-VB 60-40-2, IN-VB 60-40, IN-VB 60-50-2, IN-VB 60-50, IN-VB 60-60-2, IN-VB 60-60, IN-VB 60-70-2, IN-VB 60-70, IN-VB 60-80-2, IN-VB 60-80, IN-VB 60-90-2
IN-VB 85-10-1, IN-VB 85-10, IN-VB 85-20-2, IN-VB 85-20-1, IN-VB 85-20, IN-VB 85-30-2, IN-VB 85-30-1, IN-VB 85-30, IN-VB 85-40-2, IN-VB 85-40-1, IN-VB 85-40, IN-VB 85-50-2, IN-VB 85-50-1, IN-VB 85-50, IN-VB 85-60-2, IN-VB 85-60-1, IN-VB 85-60
IN-VB 125-10, IN-VB 125-20-2, IN-VB 125-20-1, IN-VB 125-20, IN-VB 125-30-2, IN-VB 125-30-1, IN-VB 125-30, IN-VB 125-40-2
