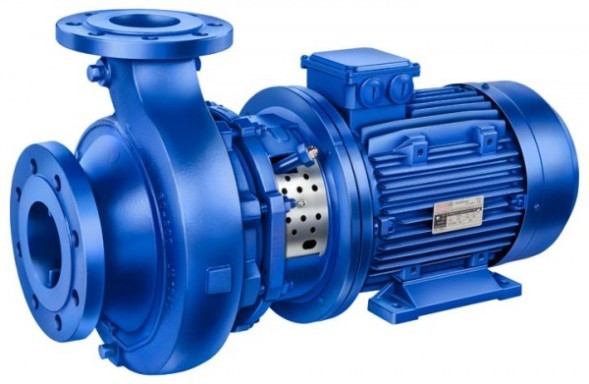

Single-channel centrifugal pumps of the series Normblock from the company Pumping bacon They are widely used due to their robust construction and outstanding performance. At the same time, due to the monoblock design, they do not take up much space, are very easy to install, reliable and durable in operation. The suction nozzle is located in the axial position, feeding in the radial position.
There are several variations of shaft seal materials and types to choose from for optimal protection, depending on the type of working environment. The mechanical seal does not require maintenance, the shaft is made of corrosion-resistant steel grade 1.4571. These pumps are also characterized by a very low noise level during operation, German three-phase motors of energy efficiency class IE2 are installed as the drive, closed design with a high degree of protection from water and dust.
Pumping liquids: water, solutions.
Limitations: no abrasive particles, contact with chemically aggressive agents.
Areas of application: water supply, water purification, pool systems, fire extinguishing sprinklers, marine applications, dehumidifiers and other industrial installations.
Technical characteristics of Speck Pumpen centrifugal pumps of the Normblock series
- Volume consumption: up to 740 m3/hour;
- Discharge height: up to 101 m;
- Nominal pressure (PN): up to 16 bar;
- Diameter of the suction pipe: 50 - 200 mm;
- Diameter of the pressure nozzle: 32 - 150 mm;
- Liquid temperature: from -30 to 140 °C.
- Installation: horizontal /vertical.
Overall standard sizes of Speck Pumpen pumps of the Normblock series
32/125, 32/160, 32/200, 32/250, 40/125, 40/160, 40/200, 40/250, 40/315, 50/125, 50/160, 50/200, 50/250, 50/315, 65/125, 65/160, 65/200, 65/250, 65/315, 80/160, 80/200, 80/250, 80/315, 100/160, 100/200, 100/250, 100/315, 125/200, 125/250, 150/200, 150/250, 80/315, 80/400, 100/315, 100/400, 125/250, 125/315, 125/400, 150/250, 150/315
You can buy Speck Pumpen centrifugal pumps of the Normblock series, find out the price and more information about the products by contacting our specialists.
