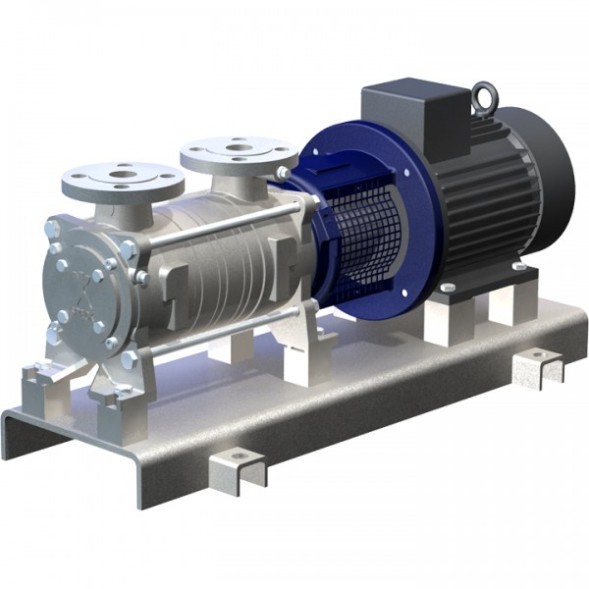

Self-priming vortex pumps of the series SK-MK from the company Pumping bacon designed to work with complex media without solid impurities, single- and multi-stage configurations are available. The installed magnetic coupling reliably separates the functional parts. Practical modular design, mounting on a base plate, horizontal orientation of the installation. The nozzles are located radially upwards with respect to the axis of rotation.
Cast iron or stainless steel grade 1.4851 are used as structural materials of the pump body, the impeller can be made of tin bronze or corrosion-resistant steel grade 1.4408, the shaft is 1.4122 or 1.4571. The drive unit consists of highly efficient three-phase electric motors with surface cooling and protection against penetration of water and dust.
Pumping liquids: water, condensate, distillate, liquefied gas, solvents, refrigerants, etc.
Limitations: no abrasive particles.
Areas of application: water supply, chemical industry, irrigation, agricultural, food industry and other industries and technological processes.
Technical characteristics of Speck Pumpen vortex pumps of the SK-MK series
- Volume consumption: up to 35 m3/hour;
- Discharge height: up to 324 m;
- Nominal pressure (PN): up to 40 bar;
- Number of steps: 1 - 8;
- Liquid temperature: up to 120 °C;
- Installation: horizontal, on the base plate.
Standard sizes of Speck Pumpen pumps of the SK-MK series
SK-2001 MK, SK-2002 MK, SK-2003 MK, SK-2004 MK, SK-2005 MK, SK-2006 MK, SK-2007 MK, SK-2008 MK, SK-3201 MK, SK-3202 MK, SK-3203 MK, SK-3204 MK, SK-3205 MK, SK-3206 MK, SK-3207 MK, SK-3208 MK, SK-3301 MK, SK-3302 MK, SK-3303 MK, SK-3304 MK, SK-3305 MK, SK-3306 MK, SK-3307 MK, SK-3308 MK, SK-4001 MK, SK-4002 MK, SK-4003 MK, SK-4004 MK, SK-4005 MK, SK-4006 MK, SK-4007 MK, SK-4008 MK, SK-5001 MK, SK-5002 MK, SK-5003 MK, SK-5004 MK, SK-5005 MK, SK-5006 MK, SK-5007 MK, SK-5008 MK, SK-6501 MK, SK-6502 MK, SK-6503 MK, SK-6504 MK, SK-6505 MK, SK-6506 MK, SK-6507 MK, SK-6508 MK
You can buy Speck Pumpen vortex pumps of the SK-MK series, find out the price and more information about the products by contacting our specialists.
