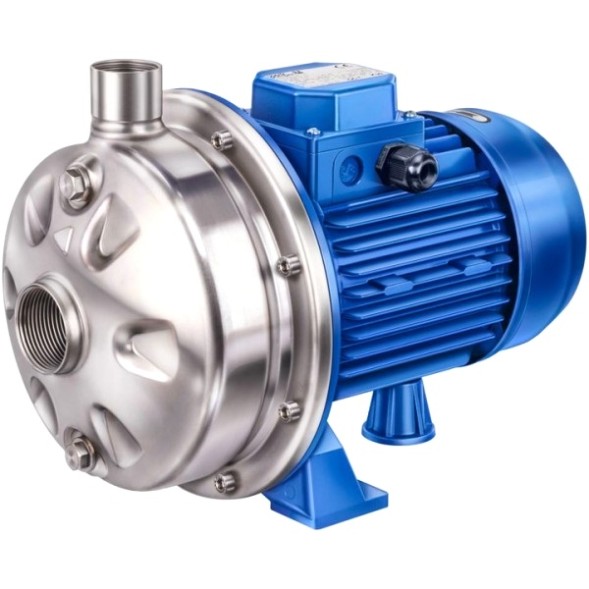

Monoblock centrifugal pumps of the series VGX from the company Pumping bacon They are very compact and practical to use, one- and two-stage configurations are available. Horizontal orientation during installation, the suction nozzle is located in the axial position, feeding in the radial position.
All parts of the pump, including those in contact with the pumped medium, are made of stainless steel. The shaft is protected by a mechanical seal, the material is carbon/ceramic. Three-phase electric motors of high energy efficiency class are used for the drive, with surface cooling and IP55 protection against penetration of water and dust.
Pumping liquids: water, solutions (moderately aggressive).
Limitations: no abrasive particles, contact with chemically aggressive agents.
Areas of application: water supply, water treatment, cooling installations and for other technological processes.
Technical characteristics of Speck Pumpen centrifugal pumps of the VGX series
- Volume consumption: up to 15 m3/hour;
- Discharge height: up to 75 m;
- Nominal pressure (PN): up to 8 bar;
- Liquid temperature: from -10 to 90 °C (above on request);
- Installation: horizontal.
Overall standard sizes of Speck Pumpen pumps of the VGX series
single-stage: VGX 7/5, VGX 7/7, VGX 9/10, VGX 12/7, VGX 12/12, VGX 12/20, VGX 20/12, VGX 20/20, VGX 20/25
two-stage: 2 VGX 7/10, 2 VGX 7/12, 2 VGX 7/15, 2 VGX 7/20, 2 VGX 12/15, 2 VGX 12/20, 2 VGX 12/30, 2 VGX 12/40, 2 VGX 20/30, 2 VGX 20/40, 2 VGX 20/50
You can buy Speck Pumpen centrifugal pumps of the VGX series, find out the price and more information about the products by contacting our specialists.
