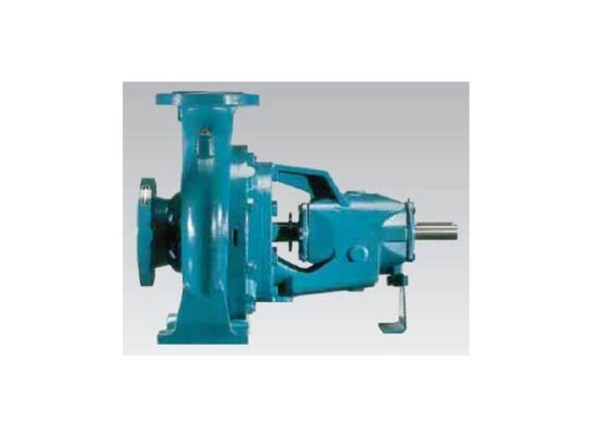

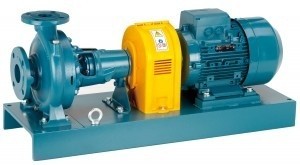

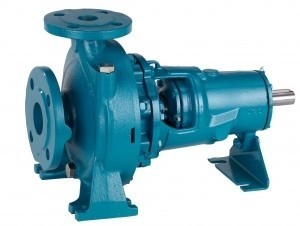

Sivag centrifugal pumps of the N series

Horizontal single-stage centrifugal pump with nominal capacity and basic parameters according to DIN 24255 - EN 733 standards with a free shaft end. Thanks to the "Back Pull-Out" design, easy and fast disassembly and assembly is guaranteed. Centrifugal pumps of the "N" series are used for pumping clean or slightly contaminated liquids.

Specifications:

• Maximum pressure: 10 bar
• Temperature: -10°C to +90°C
• Flow rate up to 300 m/h
• Head up to 95 m.
• Flanges from DN32 to DN125
• Engine speed: 2900 min-1
