Centrifugal horizontal pump MV 120, PP, VITON LIP, A

Centrifugal horizontal pump MV 120, PP, VITON LIP, A

MB 120 Horizontal Centrifugal Pump

• Capacity – up to 25 m3/h
• The diameter of the solid particles is up to 6 mm.
• Versions: PP – PVDF

The main features of the MB 120 centrifugal pump

•  the capacity of the centrifugal pump is up to 25 m3/h
•  without welded joints;
•  pumping liquids containing solid and insoluble particles up to 6 mm in size.
•  pumping of viscous liquids up to 500 Sdr
•  mechanical cuff or bellows seals;
•  use with particularly contaminated liquids (TS seal);
•  ease of maintenance and replacement of components
•  low cost of spare parts

Technical characteristics of the pump

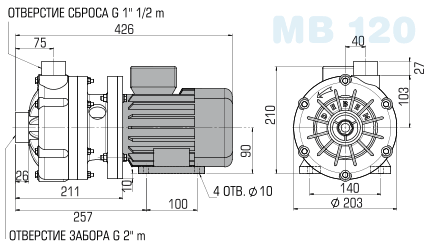

• Connection of the fence G 2” m
• Reset connection G 1 1/2” m

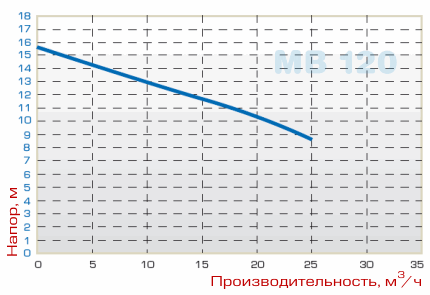

• Max. capacity 25 m3/h
• Max. head* 16 m.
• TL - TS seals
