Centrifugal horizontal pump MV 140 PP, LIP SEAL, VITON

Centrifugal horizontal pump MV 140 PP, LIP SEAL, VITON

Centrifugal chemical pump, model MB 140

• Pump capacity – up to 40 m3/h
• Max. the diameter of the solid particles is up to 12 mm.
• Materials of execution: PP – PVDF

The capabilities of the MB 140 centrifugal chemical pump

•  Max. the capacity of the centrifugal pump is up to 40 m3/h
•  made without welded joints;
•  pumping liquids containing solid and insoluble particles up to 12 mm in size.
•  pumping of viscous liquids up to 500 Sdr
•  configurations with mechanical cuff or bellows seal
•  handling contaminated liquids
• (when the pump is configured with a bellows seal TS)
•  it is easy to operate and maintain
•  low cost of spare parts

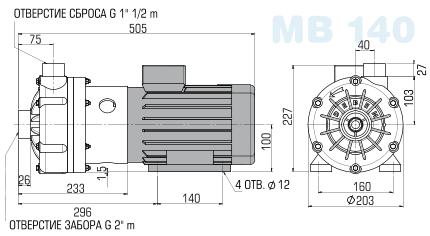

 Technical characteristics of the pump

• Connection of the fence G 2” m
• Reset connection G 1 1/2” m
• Max. pronounce
