MB 150 Horizontal type centrifugal pump

• Pump capacity – up to 42 m3/h
• The diameter of the solid particles is up to 2 mm.
• Versions: PP – PVDF

The main features of the MB 150 horizontal pump

•  the capacity of the centrifugal pump is up to 42 m3/h
•  the pump is made without welded joints;
•  It is possible to pump liquids containing solid and insoluble particles up to 2 mm in size.
•  pumping of viscous liquids up to 500 Sdr
•  mechanical cuff or bellows seals;
•  working with highly contaminated reagents
• (see the configuration of the pump with bellows seal TS)
•  it is convenient for maintenance and replacement of spare parts
•  low cost of components

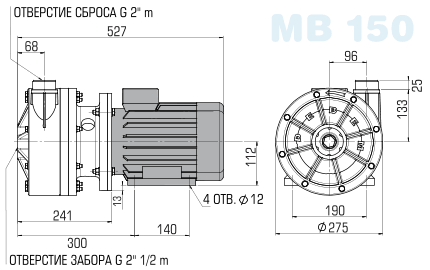

Technical characteristics of the pump

• Fence connection G 2 1/2” f
• Reset connection G 2” m
• But
