Pump IM 110, PP, 800 MM, 1.1 kW

Centrifugal vertical pump IM 110, PP, 800 MM, 1.1 kW

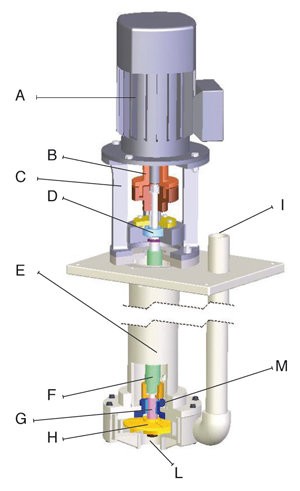

Chemical Vertical Centrifugal Pump IM 110

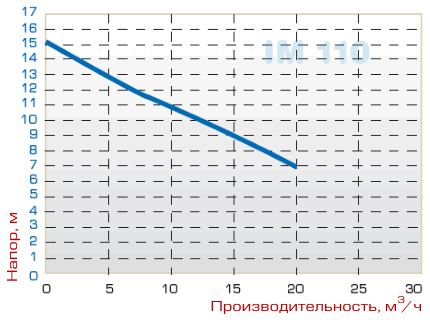

• Max. pump capacity – up to 20 m3/h
• The diameter of the solid particles is up to 6 mm.

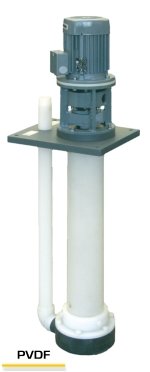

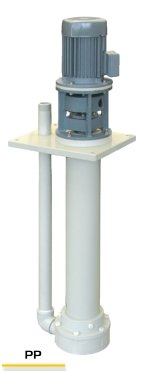

• Versions: PP – PVDF

The capabilities of the IM 110 chemical centrifugal pump

• the capacity of the chemical centrifugal pump is up to 20 m3/h
• made without welded joints
• pumping liquids containing insoluble particles up to 6 mm in size.
• it can be used with particularly contaminated liquids
• It can be supplied without an engine, completely disassembled
• the engine is replaced without dismantling the pump
• ease of maintenance and replacement of components
• (easy replacement of the compensation sleeve)

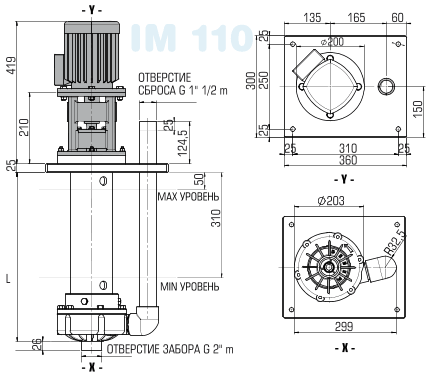

Technical characteristics of the pump

• Connection of the fence G 2” m
• Connecting the reset
