Pump IM 130, PP, 1000 MM, 2.2 kW

Centrifugal vertical pump IM 130, PP, 1000 MM, 2.2 kW

Vertical semi-submersible centrifugal pump IM 130

• Max. pump capacity – up to 30 m3/h
• The diameter of the solid particles is up to 6 mm.

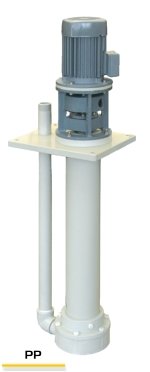

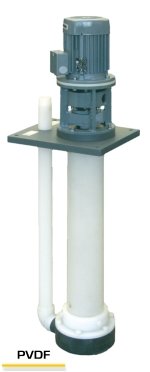

• Versions: PP – PVDF

Features of the IM 130 semi-submersible centrifugal pump

• Max. the capacity of the semi-submersible centrifugal pump is up to 30 m3/h
• the pump is made without welded joints
• pumping liquids containing insoluble particles up to 6 mm by the pump.
• It can be used with especially contaminated liquids
• It can be supplied without an engine; the pump is completely removable
• The engine can be replaced by dismantling the pump
• the pump is easy to maintain and replace components
• (easy replacement of the compensation sleeve)

Technical characteristics of the pump

• Connection of the fence G 2” m
• The sub- section
