Pump IM 155, PP, 500 MM, 5.5 kW

Centrifugal vertical pump IM 155, PP, 500 MM, 5.5 kW

Vertical centrifugal pump of semi-submersible type IM 155

• Max. pump capacity – up to 45 m3/h
• The diameter of the solid particles is up to 2 mm.

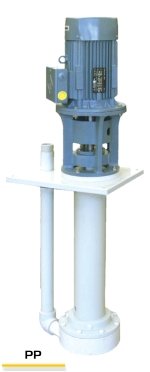

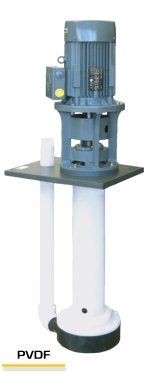

• Versions: PP – PVDF

The capabilities of the IM 155 vertical centrifugal pump

• Max. the capacity of the vertical centrifugal pump is up to 45 m3/h
• the pump is made without welded joints
• pumping liquids containing insoluble particles up to 2 mm by the pump.
• It can be used with especially contaminated liquids
• It can be supplied without an engine; the pump is completely removable
• the engine is replaced without dismantling the pump
• easy maintenance and replacement of spare parts

Technical characteristics of the pump

• Fence connection G 2 1/2” f
• Connecting the reset
