Pump IM 80, PVDF, 800 MM, 0.37 kW

Centrifugal vertical pump IM 80, PVDF, 800 MM, 0.37 kW

Vertical centrifugal pump IM 80

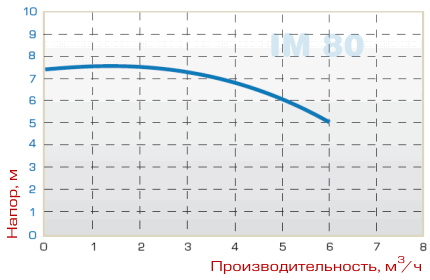

• Pump capacity – up to 6 m3/h
• The diameter of the solid particles is up to 7 mm.

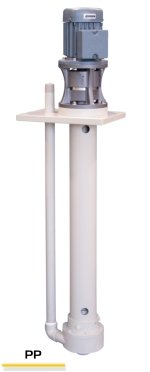

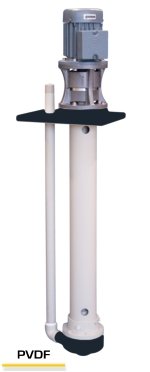

• Versions: PP – PVDF

The main features of the IM 80 centrifugal pump

• the capacity of the centrifugal pump is up to 6 m3/h
• the pump is made without welded joints
• pumping liquids containing insoluble particles up to 7 mm in size.
• it can be used with particularly contaminated liquids
• It can be supplied without an engine, completely disassembled
• the engine is replaced without dismantling the pump
• ease of maintenance and replacement of components
• (easy replacement of the compensation sleeve)

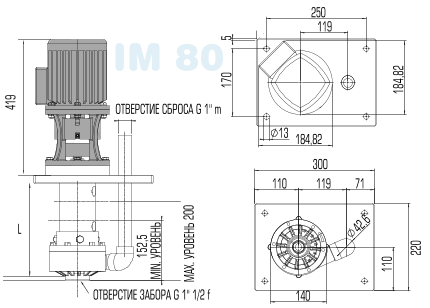

Technical characteristics of the pump

• Connection of the fence G 1 1/2” f
• Connecting the reset
