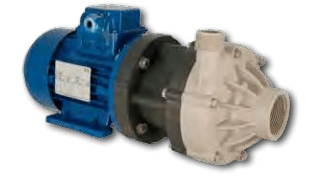

Pump DM 06 PVDF, VITON, 0.25 kW

Centrifugal horizontal pump with magnetic coupling DM 06 PVDF, VITON, 0.25 kW

Horizontal centrifugal pumps driven through a magnetic coupling with a hermetically insulated impeller, the flow part is made of polypropylene or PVDF. The pumping unit consists of a small number of components, which greatly simplifies maintenance. The pump is designed to work with liquids that do not contain impurities and suspended particles.

Chemical pump with magnetic coupling DM06

The main features of the centrifugal pump with magnetic coupling DM 06

• pump capacity up to 7.5 m3/h
• the height of the liquid pressure is up to 8.5 m.
• no possible leaks due to the magnetic coupling mechanism
• the ability to pump viscous reagents up to 150 SDRs
• the flow parts of the pump are made of solid casting and do not contain welded joints
• easy maintenance
• easy replacement of component parts

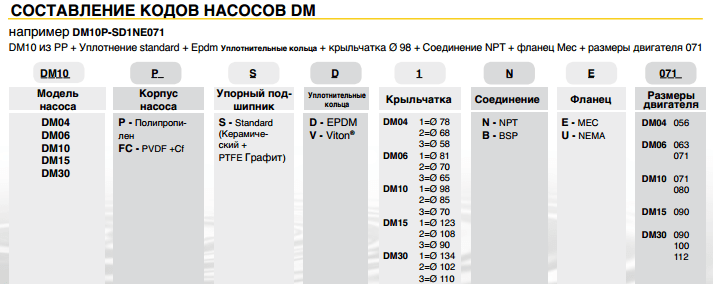

Typical configurations

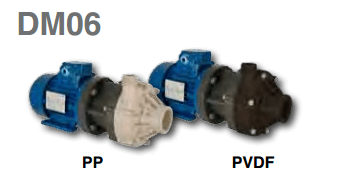

• DM 06 (0.25 kW)        PP-VITON DM06P-SV1BE063
  • • •    PP-EPDM  DM06P-SD1BE063
• DM 06 (0.37 kW)        PP-VITON   DM06P-SV1BE071
  • • • PP-EPDM   DM06P-SD1BE071
• DM 06 (0.25 kW)     PVDF-VITON  DM06FCSV1BE063
  • • •  PVDF-EPDM   DM06FCSD1BE063
• DM 06 (0.37 kW)   PVDF-VITON   DM06FCSV1BE071
  • • •  PVDF-EPDM     DM06FCSD1BE071

Explanation of abbreviations

PP – polypropylene
PVDF – polyvinyldenafluoride (PVDF reinforced with carbon fiber CF)

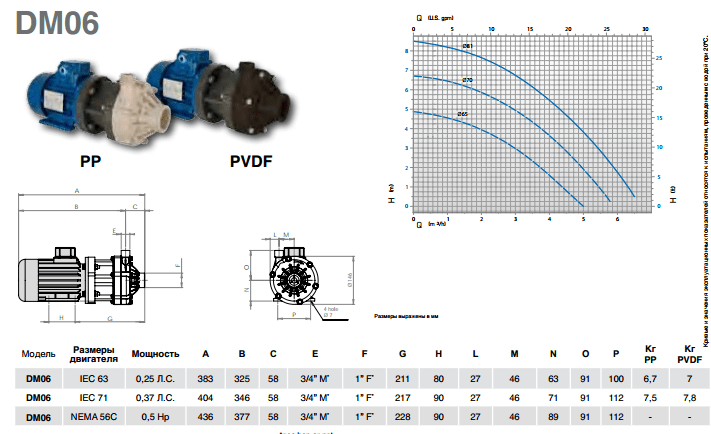

Technical specifications

• Connection of the fence G 1” F or flange DN 25
• Reset connection G 3/4” M or flange DN 20
• Max. performance¹ 7 m3/h
• Max. pressure height¹ 8.5 m
• Max. diameter of solid particles 0 mm
• Max. viscosity of the pumped liquid 150 SDRs
• Max. The noise level is 48 dB
• Material of execution PP, PVDF
• Max. liquid temperature 65°C-95°C
• Net/Gross weight², кг : 0,25 кВт - 6,7/14,7/7/15; 0,37 кВт - 7,5/15,5/7,8/15,8
• Package size³, cm 47x23x35 D

Technical characteristics of the electric motor

Engine size

• IEC 63 /IEC 71
• Power 0.25 kW /0.37 kW
• Voltage 230/400V - 50/60 Hz, 3 phases*, 2900 rpm, 2 poles
• Energy efficiency class IE3
• Insulation class F
• Dust and moisture protection class IP55
• Ambient temperature - 30°C + 45°C
