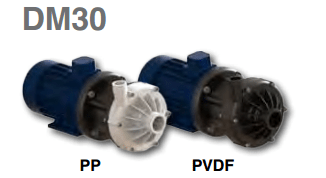

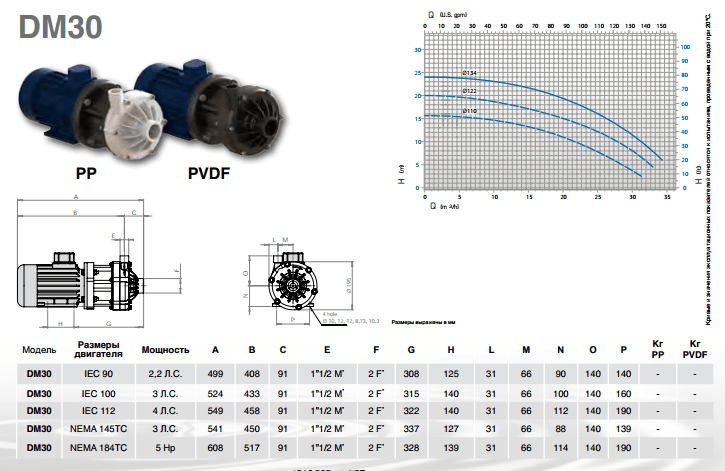

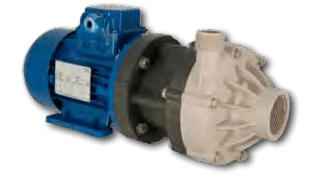

Centrifugal horizontal pump with magnetic coupling DM 30 PVDF, VITON, 2.2 kW
Horizontal centrifugal pumps driven through a magnetic coupling with a hermetically insulated impeller, the flow part is made of polypropylene or PVDF. The pumping unit consists of a small number of components, which greatly simplifies maintenance. The pump is designed to work with liquids that do not contain impurities and suspended particles.
PUMPS WITH MAGNETIC COUPLING DRIVE
Two magnets control the operation of the pump; an external magnet located on the motor shaft transmits motion to an internal magnet rigidly fixed with a hermetically insulated impeller. Due to the fact that the impeller is not structurally connected to the engine shaft, all seals have been eliminated, and, consequently, leaks have been removed.-
pumped liquid caused by wear
