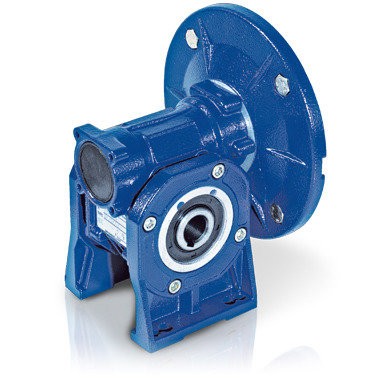

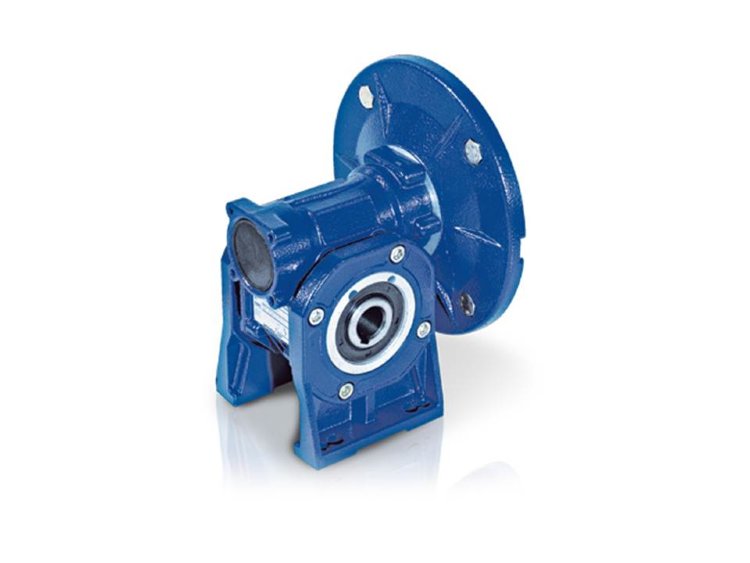

SW030 Worm Gear SW030-5-120x19-25U

WORM GEARBOXES AND COMBINED SW - ISW UNITS

Features:

• Sizes: 030-040-050-063-075-090-105
• Available modifications: SW —for connection to the flange of an electric motor, ISW — with a drive input shaft, SWL — with a torque limiter
• Power up to 7.5 kW
• Gearboxes in an aluminum housing are supplied with synthetic oil, which makes it possible to install universally without having to change the amount of lubrication. Moreover, plug-free blocks reduce the risk of oxidation and oil contamination.
• Reduction factor from 5 to 100
• Max. torque 630 Nm and permissible radial loads max. 12,000 N
• Cast aluminum alloy housings
• Features

  Brand

  Motovario
