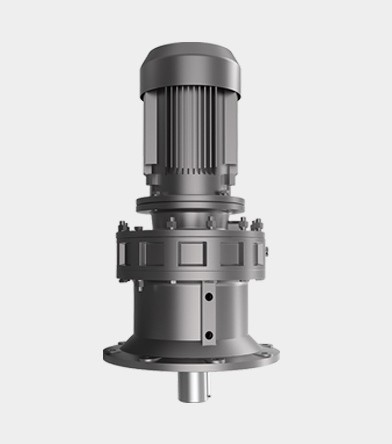

Cycloidal gear motor XLD3 i=9 Y1. 5KW
Cycloidal gear motors XLD - this is a high quality of manufacture and ease of operation.
Модели: XLD1 XLD2 XLD3 XLD4 XLD5 XLD6 XLD7 XLD8 XLD9 XLD10 XLD11 XLD12
The coefficient of speeds: 9 11 17 23 29 35 43 59 71 87
Cycloid transmission (planetary-terminal) differs from others in that 67% of the tooth area of cycloidal discs is in contact at any given time. This allows the cycloid transmission to withstand the highest impact loads, which can be up to 500% of the rated torque of the gearbox.
Any other type of transmission has an overlap coefficient ten times less, as a result of which manufacturers of general industrial drives focus on an overload capacity of no more than 200% of the rated torque.
Features of the cycloidal gearbox
- High extraction coefficient and high level of efficiency
- If the cycloidal gearbox is equipped with a single-stage transmission, the exhaust coefficient can reach up to 1:87 and the efficiency will be more than 90%. If this transmission equipment is equipped with multi-stage control, the exhaust coefficient will be higher.
- Compact structure and small size.
- The cycloidal gearbox is equipped with the principle of planetary control, the input and output shafts are located on the same axis, so the gearbox has a small size.
- Smooth running and low noise.
- Reliable performance and long service life.
- The main components of the cycloidal gearbox are made of high-carbon chrome-plated steel material and these products have a high level of strength. Moreover, the friction of the second kind of some gear contacts makes the gearbox durable.
- The cycloidal gearbox has a rational design and is easy to maintain.
