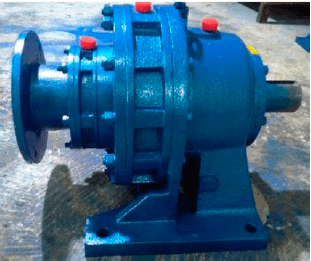

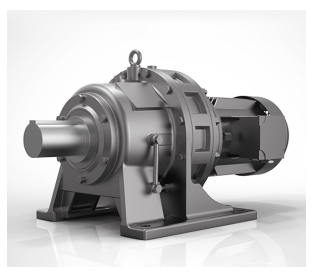

Cycloidal Gearbox XWEDJ95-2065-<2.2>

Cycloidal gearbox XWEDJ95-2065-

Cycloidal gear motors XWEDJ are of high manufacturing quality and ease of operation.

Models: Cycloidal gear motor XWEDJ95-2065-2.2

The coefficient of speeds: 9   11   17   23   29   35   43   59   71   87

Cycloid transmission (planetary-terminal) differs from others in that 67% of the tooth area of cycloidal discs is in contact at any given time. This allows the cycloid transmission to withstand the highest impact loads, which can be up to 500% of the rated torque of the gearbox.

Any other type of transmission has an overlap coefficient ten times less, as a result of which manufacturers of general industrial drives focus on an overload capacity of no more than 200% of the rated torque.

Features of the cycloidal gearbox

• High extraction coefficient and high level of efficiency
• If the cycloidal gearbox is equipped with a single-stage transmission, the exhaust coefficient can reach up to 1:87 and the efficiency will be more than 90%. If this transmission equipment is equipped with multi-stage control, the exhaust coefficient will be higher.
• Compact structure and small size.
• The cycloidal gearbox is equipped with the principle of planetary control, the input and output shafts are located on the same axis, so the gearbox has a small size.
• Smooth running and low noise.
• Reliable performance and long service life.
• The main components of the cycloidal gearbox are made of high-carbon chrome-plated steel material and these products have a high level of strength. Moreover, the friction of the second kind of some gear contacts makes the gearbox durable.
• The cycloidal gearbox has a rational design and is easy to maintain.
