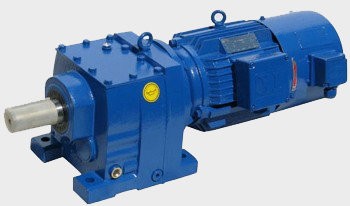

The RC cylindrical gear motor is available in several standard sizes: 37, 47, 57, 67, 77, 87, 97, 107, 137, 147, 167. The drives are assembled from German components. The torque of the gearboxes reaches 14,800 Nm. The advantages of the units include universal connection dimensions.
Cylindrical gear motors R (RC) are designed for a wide range of industrial applications. The units are used to reduce the engine speed while increasing the torque.
The coaxial cylindrical RC gear motor is positioned as the most in-demand and efficient equipment in the field of drive technology. A justified combination of compact housing, high torque values (up to 13300Nm) and a wide range of gear ratios. HR series gear motors have gained well-deserved popularity all over the world. It should also be noted that representatives of HR class drive equipment act as the basic series of European cylindrical gear motors, the main requirements and standards of which are adhered to by most of the world-renowned manufacturers, including: SEW-EURODRIVE, MOTOVARIO, TOS-ZNOJMO, NORD, VARVEL and others.
The R series is a version on the paws, the RF series is a flange. Due to the fact that gear motors have unified connection dimensions, they are considered as a rational and effective replacement for the equipment of the manufacturers mentioned above. The advantages of the RC series also include the ability to mount and install in any position convenient for specific operating conditions. Now you don't adjust to the specifics of the equipment, but it adjusts to your needs.
The advantages of R (RC) cylindrical drives include:
- using Sew-Eurodrive components;
- unified connection dimensions;
- compactness;
- large range of gear ratios (from 1.57 to 197.3);
- high torque values (up to 13569 Nm);
- easy installation and maintenance.
- The range includes a large number of standard sizes, which allows you to select a drive for specific tasks. The gear motors of the R (RC) series are available in two versions — with a flange and on paws.
The scheme of the standard designation
RC Gearbox-47-67,6-20.7- B3-0.55
- RC Series;
- 47 - standard size;
- 67.6 - gear ratio;
- 20.7 - output shaft rotation speed (rpm);
- B3 - mounting position;
- 0.55 is the power of the electric motor
