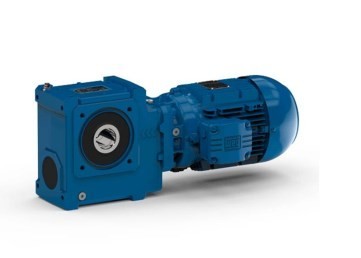

Cylinder-worm gear motor SUA 608B 3A 71-04F-TH-TF; i=416.00
Worm cylindrical gearboxes gearboxes Watt Drive Series S.
Thanks to the uniquely selected combination of the worm wheel with special lubricants, optimized shape, this powerful drive achieves a high level of efficiency and torque.
The gearbox housing allows for various mounting options. The double seal of the shaft chamber is used as standard. The low-profile design makes it suitable for use, for example, in the food industry. The housing has no recesses, which simplifies cleaning - this plays an essential role in areas of production with strict hygiene requirements.
Модели: S 454, S 455, S 506, S 507, S 608, S 609.
Technical specifications
- Number of executions: . . . . . . . . . . . . . . . . . . . . 18
- Power range: . . . . . . . . . . . . . . . . . . . . . . .0.12 - 55kW
- Torque range: . . . . . . . . . . . . . . . .23 - 14.000Nm
- Abbreviation: . . . . . . . . . . . . . . . . . . . . . . . . . . . . From 0.8 to 13,500
- The variant of execution: . . . . . . . . . . . . . . . . . . . . . . output shaft
- Installation /execution: . . . . . . . . . . . . . . . . . . . . . . flange, paws
- Installation /execution: . . . . . . . . . . . . . . . . . . . . . . flange, paws
Types of output configurations
- Mounting on the "paws" and on the shaft - two diameters of the output shaft per one gearbox size
- The possibility of installing a keyless compression disc
- Possibility of manufacturing an external cylindrical shaft (optional)
Types of input configurations
- Adapters for motors according to IEC standard; NEMA
- External cylindrical input shaft
AC motors used
- Compact engines engines with brakes - WAR series
- Motors and motors with brakes according to IEC-standard – WAF series
- Single- and two-speed engines
The main characteristics of the braking device
- AC and DC power supply
- Fast-actuating electronically controlled brake
Engine Options
- Thermistor and thermostatic motor temperature protection devices
- Independent ventilation (fan servo)
- Externally embedded incremental encoder
| Gearbox design : | Cylinder-worm gear motor | |
| Type designation : | SUA 454A 3A 71-06E-TH-TF | |
| Operating conditions : | ||
| Ambient temperature : | +20 | °C |
| Operating mode : | S1 | |
| Electric motor data : | ||
| Series : | EUSA'S WAY | |
| Housing material : | Aluminum | |
| Efficiency coefficient n : | IE1-57.0% | |
| Series : | 3AWA | |
| Engine power : | 0.18 | [kW] |
| Nominal number of revolutions : | 905 | [rpm] |
| Rated torque : | 1.9 | [Nm] |
| Voltage : | 230/400 | [In] |
| Frequency : | 50 | [Hz] |
| Connection : | D/Y | |
| Rated current : | 1.3 /0.74 | [A] |
| The ratio of the inrush current to the rated current : | 3.3 | |
| 'cos φ' : | 0.62 | |
| Protection : | IP 55 | |
| Mounting position of the terminal box : | side 2 cable entry I | |
| Insulation class : | F | |
| Moment of inertia : | 0.77x10-3 | [kgm2] |
| Electric motor Options : | ||
| Fan : | Self-ventilation | |
| Temperature control : | Bimetallic switch NC contact (TH) and PTC thermistor (TF) for disconnection | |
| Ball Bearing : | Standard | |
| Gearbox data : | ||
| Maximum heat output at a temperature of +20 °C and operating mode S1 : | 1.1 | [kW] |
| Output speed : | 33 | [rpm] |
| The moment at the exit : | 43 | [Nm] |
| Service factor : | 2.15 | |
| Number of steps : | 2 | |
| Gear ratio : | 27.33 | |
| Permissible input torque at fB1 : | 4 | [Nm] |
| The maximum speed on the input shaft of the gearbox : | 5000 | [rpm] |
| Mounting position : | H30 | |
| Hollow shaft : | Ø 30 H7 | [mm] |
| Keyway : | DIN6885.1 | |
| Painting : | LC1 - indoor installation, neutral atmosphere NDFT 60 µm (C1 - DIN EN ISO 12944-5) | |
| Colour : | RAL 9007 ( Grey aluminum ) | |
| Total weight : | 19.1 | [kg] |
| Connection to the electric motor : | ||
| Type : | Direct connection | |
| Input shaft : | Ø 14 j6 x 18,5 mm | |
| Inlet flange : | the cavadrate corresponds to. IEC Ø160 mm | |
| Gearbox Options : | ||
| Oil : | Synthetic - CLP PG ISO VG 460 | |
