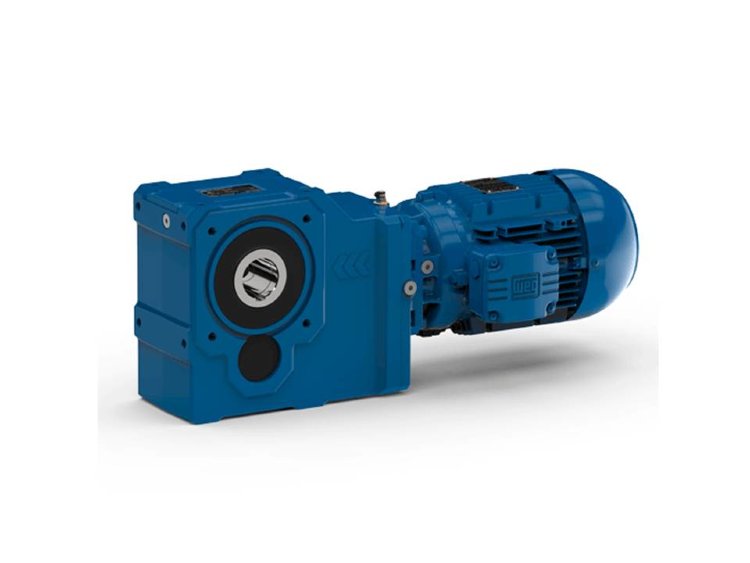

Conical-cylindrical reducers Watt Drive
The compactness and optimized structure of the housing of cylindrical-conical gearboxes distinguishes them by their versatility, which is a ready-made solution for various installation and application options. The unique position of the engine ensures an almost flat and easy installation on the machine unit.
The various designs of the output shaft, flange and double seals developed by Watt Drive make these gearboxes convenient and very reliable. The dimensions of the shafts and flanges are similar for cylinder-worm drives.the same company. In this case, the torque and price will be lower and perhaps this option will suit you.
At low speeds of the electric motor, for its safety, we recommend purchasing Forced cooling of the electric motor, it will not allow your motor to overheat and burn out.
: Wed 40, Wed 50, Wed 60, Wed 70, Wed 75, Wed 77, Wed 80, Wed 85, Wed 110, Wed 136, Wed 139.
Technical specifications
- Number of executions: . . . . . . . . . . . . . . . . . . . . . 18
- Power range: . . . . . . . . . . . . . . . . . . . . . . . .0.12 - 55kW
- Torque range: . . . . . . . . . . . . . . . . .23 - 14.000Nm
- Abbreviation: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . From 0.8 to 13,500
- The variant of execution: . . . . . . . . . . . . . . . . . . . . . . . output shaft
- Installation /execution: . . . . . . . . . . . . . . . . . . . . . . . flange, paws
- Installation /execution: . . . . . . . . . . . . . . . . . . . . . . . flange, paws
Types of output configurations:
- Mounting on the "paws" and on the shaft - two diameters of the output shaft per one gearbox size
- The possibility of installing a keyless compression disc
- Possibility of manufacturing an external cylindrical shaft (optional)
Types of input configurations:
- Adapters for motors according to IEC standard; NEMA
- External cylindrical input shaft
AC motors used:
- Compact engines engines with brakes - WAR series
- Motors and motors with brakes according to IEC-standard – WAF series
- Single- and two-speed engines
| Gearbox design : | Cylindrical-conical gear motor | |
| Type designation : | KUA 110A 3B 160M/L-06E-TH-TF | |
| Operating conditions : | ||
| Ambient temperature : | +20 | °C |
| Operating mode : | S1 | |
| Electric motor data : | ||
| Series : | EUSA'S WAY | |
| Housing material : | Aluminum | |
| Efficiency coefficient n : | IE2-88.0% | |
| Series : | 3BWA | |
| Engine power : | 7.5 | [kW] |
| Nominal number of revolutions : | 965 | [rpm] |
| Rated torque : | 74 | [Nm] |
| Voltage : | 400/690 | [In] |
| Frequency : | 50 | [Hz] |
| Connection : | D/Y | |
| Rated current : | 15.2 /8.8 | [A] |
| The ratio of the inrush current to the rated current : | 6.6 | |
| 'cos φ' : | 0.81 | |
| Protection : | IP 55 | |
| Mounting position of the terminal box : | side 2 cable entry I | |
| Insulation class : | F | |
| Moment of inertia : | 106x10-3 | [kgm2] |
| Electric motor Options : | ||
| Fan : | Self-ventilation | |
| Temperature control : | Bimetallic switch NC contact (TH) and PTC thermistor (TF) for disconnection | |
| Ball Bearing : | Standard | |
| Gearbox data : | ||
| Maximum heat output at a temperature of +20 °C and operating mode S1 : | 40 | [kW] |
| Output speed : | 6.8 | [rpm] |
| The moment at the exit : | 10521 | [Nm] |
| Service factor : | 0.80 | |
| Number of steps : | 3 | |
| Gear ratio : | 141.75 | |
| Angular backlash : | 3' - 5' | |
| Reduced angular backlash (min.-max.) (optional) : |
3' - 5' | |
| Permissible input torque at fB1 : | 56.4 | [Nm] |
| The maximum speed on the input shaft of the gearbox : | 3200 | [rpm] |
| Mounting position : | H30 | |
| Hollow shaft : | Ø 90 H7 | [mm] |
| Keyway : | DIN6885.1 | |
| Painting : | LC1 - indoor installation, neutral atmosphere NDFT 60 µm (C1 - DIN EN ISO 12944-5) | |
| Colour : | RAL 9007 ( Grey aluminum ) | |
| Total weight : | 322 | [kg] |
| Connection to the electric motor : | ||
| Type : | Direct connection | |
| Input shaft : | Ø 42 k6 x 35 mm | |
| Inlet flange : | kavadratny resp. IEC Ø300 mm | |
| Gearbox Options : | ||
| Oil : | Mineral - CLP ISO VG 220 | |
