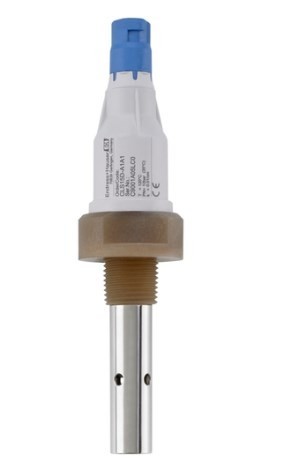

Condumax CLS15D Sensor CLS15D-B1A1
Advantages
- Reliable and accurate measurement of conductivity in the low range
- Easy to clean, thanks to the polished measuring surfaces
- Possibility of sterilization and autoclave treatment
- A quality certificate indicating the individual cell constant
- The data log simplifies traceability and preventive maintenance
- Maximum process safety due to non-contact inductive signal transmission
- Convenient maintenance planning with Memobase Plus, providing easy data and sensor management
Scope of application
Condumax CLS15D is designed to measure conductivity in clean and ultrapure water for monitoring and control:
- Ion exchange processes
- Reverse osmosis
- Cooling water
- Distillations
- Chip removal
Digital sensors can be used in power plants to measure:
- Conductivity during degassing
- pH at different conductivity
- International explosion protection certificates ATEX and FM.
The principle of measurement
Conductive sensors
Application
Water, power plants, pharmaceuticals, general industrial applications.
Specifications
Analog or digital 2-electrode conductivity measurement system
Measuring range
- k=0.01: 0-20 µcm/cm
- k=0.1: 0-200 µcm/cm
The principle of measurement
- The conductive principle of conductivity measurement.
- Stainless steel electrodes with polished surface.
Construction
2-electrode conduction cell with coaxial electrodes, electronically polished
Material
- Electrode: 1.4435 stainless steel
- Electrode shell: PES
Overall dimensions
- Electrode diameter: 16 mm (0.63in)
- Electrode length: approx. 55 mm (2.14 inches)
Operating temperature max. 100°C (140°C /30 minutes)
Operating pressure 13 bar at 20 °C (188 psi at 68 °F) 1 bar at 120 °C (14 psi at 248 °F)
NTC Temperature Sensor
Explosion protection certificates ATEX, NEPSI, FM, CSA
Connection process: 1/2"NPT, 3/4" NPT, clamp 11/2"
Cable: Memosens Connector
Degree of protection IP68
Additional certificates
Calibration certificate.
Certificate for materials 3.1
