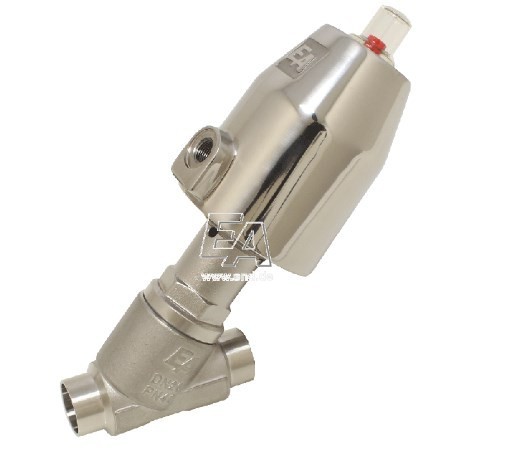

DA2D3121020/OS Pneumatic valve DN20, SK50-Ms., OS, Stainless steel/PTFE, Ruhe zu, gegen Medium
An ideal alternative to complex ball valves with a drive. The inclined air valve is mounted once and for all.
The design is a success in thousands of enterprises around the world.
- Valve body: bronze, 316L stainless steel
- Gasket: PTFE - standard, others on request
- Connections: NPT thread, BSP, welding coupling
- Operating principle: 2/2-way
- Cross section: 13 ... 65 mm
- Consumption: approx. 3.7 m3/h... 90 m3/h
- Nominal pressure: RU 25
- Ambient temperature: -10... +180°C
The flow direction under the saddle is for water and other media except gases. For operation without water hammer.
The flow direction above the seat is for compressible media, including gases and steam. Allows the use of smaller pneumatic actuators.
Simple control valves for high flow rates, which work excellently in processes using steam, heat transfer and flow control.
Features
Diameter DN, mm
50
Pressure PN, bar
16
Weight, kg
5,1
Brand
END
