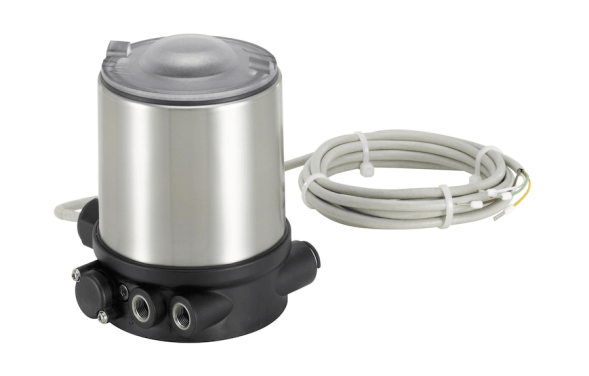

The remote access sensor type 8798 is a non-contact displacement sensor for use on pneumatically actuated control actuators. This sensor is available in two versions - as a linear and as a rotary motion sensor and is used in combination with an actual position sensor type 8791/8792 and a process controller type 8793 (remote access version). The linear remote access sensor can be combined with our ELEMENT series direct flow valves type 210X/230X and CLASSIC type 27XX. And the rotary sensor can be installed according to NAMUR's recommendation (DIN IEC 534-6) on shift drives or rotary motion drives according to VDI/VDE 3845.
Features
Power Supply, In
- 24V AC/DC
Degree of IP protection
IP65/67
Temperature Tmax, °C
0 до +80°C
Weight, kg
0,7 kg
Brand
Burkert
