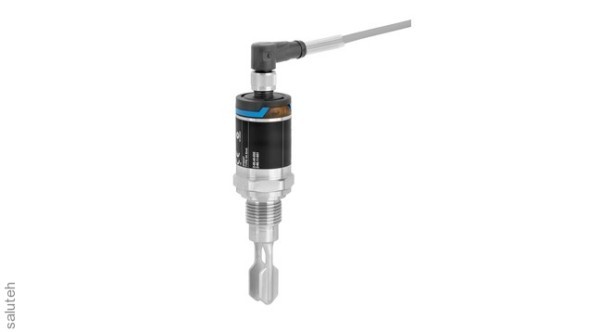

Exposure Sensor FTL31-5VQ2/0 Liquiphant FTL31 FTL31-GR4M2AAWBJ+RZ
Liquiphant FTL31 - liquid level limit sensor. FTL31 designed for industrial applications in all industries. Sensor Liquiphant It can be used to prevent overflow or protect the pump from dry running in cleaning and filtration systems, as well as in cooling vessels and vessels with lubricants.
Compactness:
- The most compact vibration sensor on the market
Safety:
- Continuous self-diagnosis
- Reliable level determination regardless of the properties of the environment
Effectiveness:
- Does not require calibration and adjustment
- Does not require complex commissioning
Specifications:
| Principle of measurement | Vibration sensors, liquid products | |
| Specifications/Application | A limit level sensor designed for liquids and installed in tanks, containers or pipelines. | |
| Food /Communication | 20 ... 253V AC/DC, 2-wire 10 ... 30V DC-PNP 3-wire |
|
| Ambient temperature | -40 °C ... 70 °C (-40 °F ... 158 °F) |
|
| Operating temperature | -40 °C ... 150 °C (-40 °F ... 302 °F |
|
| Operating pressure abs. /max. overpressure limit | Vacuum ... 40 bar (Vacuum ... 580 lb/sq. inch) |
|
| Min. density of the measured product | >0,7g/cm³ (>0,5g/cm³ optional) |
|
| Wetted parts | 316L | |
| Joining the process | Threaded connections: G1/2, G3/4, G1, MNPT1/2, MNPT3/4, MNPT1, R1/2, R3/4, R1 |
|
| Exit | Per./post. current, post. current – PNP | |
| Certificates/Standards | WHG Material EN10204-3.1 Final Inspection Report Marine DNV GL, ABS, LR |
|
| Safety approvals | Overfill prevention WHG |
|
| Certificate of construction | EN 10204-3.1 |
|
| Marine Certificate | ABS/LR/BV/DNV |
|
| Options | Switching delay during correction Cleaning of oils and grease, Without PWIS |
|
Features
Power Supply, In
- 12V DC
Brand
Endress Hauser
