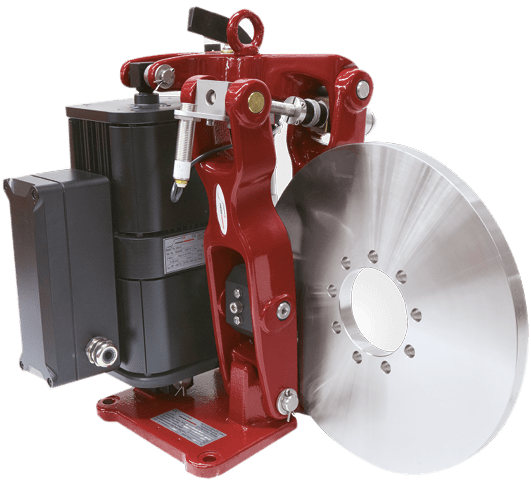

Disc brake systems Pintsch Bubenzer SB 16 with electrohydraulic drive BUEL They are high-performance and extremely reliable units to ensure safety in the operation of critical production processes. They are quite easy to maintain, have self-centering levers, and mechanical wear is corrected using an automatic compensator.
Limit switch release control, manual release lever. Brake linings made of special organic compounds for low friction speeds, and for high speeds - powder friction materials. The fasteners of the structure are made of stainless steel.
The entire range of standard sizes is available in right- and left-hand versions, additional corrosion protection methods and optional accessories (wear control of the limit switch, monitoring systems, couplings and bushings for the brake disc, etc.) can also be applied on request.
Technical characteristics of Pintsch Bubenzer SB 16 disc brake systems
- Max. braking torque: 205 - 890 Nm;
- Min. braking torque: 103 - 445 Nm;
- Contact force: 2610 - 5000 N;
- Drive power: 150 - 350 Watts;
- Outer diameter of the brake disc: 250 - 500 mm;
- The thickness of the brake disc: 20 mm.
Parameters of standard sizes of Pintsch Bubenzer SB 16 disc brakes
Type of brake system | Max. brake moment, Nm | Mines. brake moment, Nm | Contact information effort, N | Electro- hydraulic BUEL drive |
SB 16 - 250x20 - BL 22-5 -R SB 16 - 250x20 - BL 22-5 -L | 205 | 103 | 2610 | Power 150 W, Current 0.4A (400 V) |
SB 16 - 280x20 - BL 22-5 -R SB 16 - 280x20 - BL 22-5 -L | 235 | 118 | ||
SB 16 - 315x20 - BL 22-5 -R SB 16 - 315x20 - BL 22-5 -L | 270 | 135 | ||
SB 16 - 355x20 - BL 22-5 -R SB 16 - 355x20 - BL 22-5 -L | 315 | 158 | ||
SB 16 - 400x20 - BL 22-5 -R SB 16 - 400x20 - BL 22-5 -L | 360 | 180 | ||
SB 16 - 450x20 - BL 22-5 -R SB 16 - 450x20 - BL 22-5 -L | 410 | 205 | ||
SB 16 - 500x20 - BL 22-5 -R SB 16 - 500x20 - BL 22-5 -L | 465 | 233 | ||
SB 16 - 250x20 - BL 30-5 -R SB 16 - 250x20 - BL 30-5 -L | 265 | 133 | 3400 | Power 160 W, Current 0.4A (400 V) |
SB 16 - 280x20 - BL 30-5 -R SB 16 - 280x20 - BL 30-5 -L | 305 | 153 | ||
SB 16 - 315x20 - BL 30-5 -R SB 16 - 315x20 - BL 30-5 -L | 355 | 178 | ||
SB 16 - 355x20 - BL 30-5 -R SB 16 - 355x20 - BL 30-5 -L | 410 | 205 | ||
SB 16 - 400x20 - BL 30-5 -R SB 16 - 400x20 - BL 30-5 -L | 470 | 235 | ||
SB 16 - 450x20 - BL 30-5 -R SB 16 - 450x20 - BL 30-5 -L | 535 | 268 | ||
SB 16 - 500x20 - BL 30-5 -R SB 16 - 500x20 - BL 30-5 -L | 605 | 303 | ||
SB 16 - 250x20 - BL 35-5 -R SB 16 - 250x20 - BL 35-5 -L | 390 | 195 | 5000 | Power 350 W, Current 0.6A (400 V) |
SB 16 - 280x20 - BL 35-5 -R SB 16 - 280x20 - BL 35-5 -L | 450 | 225 | ||
SB 16 - 315x20 - BL 35-5 -R SB 16 - 315x20 - BL 35-5 -L | 520 | 260 | ||
SB 16 - 355x20 - BL 35-5 -R SB 16 - 355x20 - BL 35-5 -L | 600 | 300 | ||
SB 16 - 400x20 - BL 35-5 -R SB 16 - 400x20 - BL 35-5 -L | 690 | 345 | ||
SB 16 - 450x20 - BL 35-5 -R SB 16 - 450x20 - BL 35-5 -L | 790 | 395 | ||
SB 16 - 500x20 - BL 35-5 -R SB 16 - 500x20 - BL 35-5 -L | 890 | 445 |
You can buy Pintsch Bubenzer SB 16 electrohydraulic disc brakes, find out the price and more information about the products by contacting our specialists.
