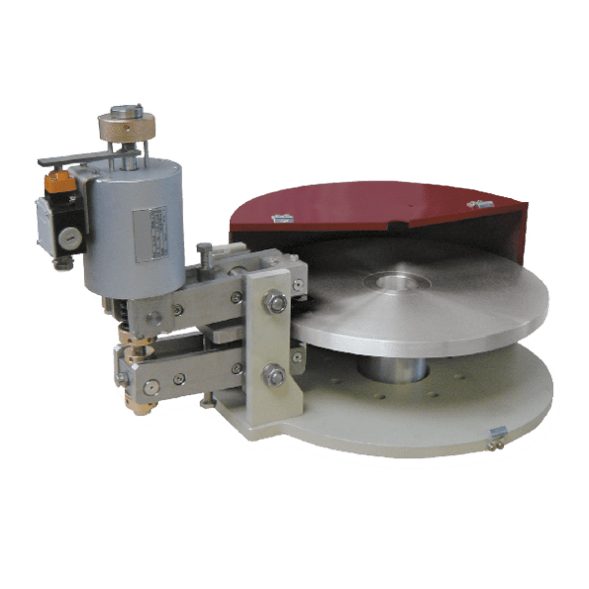

Compact disc brake systems SB 17 MX from Pintsch Bubenzer with an electromagnetic drive, they are excellent for use in lifting installations, cranes, rotary mechanisms, etc. With their high performance indicators, they are small in size and easy to handle. Adjusting the braking torque value, an easy way to manually compensate for mechanical wear. Power supply via direct connection to the AC mains with a voltage of 380-480 V (3 phases, 50 Hz).
The block body is made of stainless steel, organic pads. Additionally, the complete set can include: a function for monitoring the wear of the limit switch, other materials for pads, a hydraulic element for adjusting the application time (1-8 seconds), brake discs with various couplings, bushings, etc.
Technical characteristics of Pintsch Bubenzer SB 17 MX industrial disc brakes
- Braking moment: 60 - 750 Nm;
- The power of magnets: 100 - 360 Watts;
- Outer diameter of the brake disc: 200 - 500 mm;
- The thickness of the brake disc: 20 mm.
Parameters of standard sizes of Pintsch Bubenzer SB 17 MX disc brakes
Type of brake system | Brake moment, Nm | Max. diameter bushings, mm | Contact information effort, N | Power, W (start/hold) |
SB 17 MX 111 - 200 x 20 | 60 | 80 | 1100 | 100 /100 |
SB 17 MX 111 - 225 x 20 | 70 | 105 | ||
SB 17 MX 111 - 250 x 20 | 85 | 130 | ||
SB 17 MX 111 - 280 x 20 | 100 | 160 | ||
SB 17 MX 111 - 315 x 20 | 115 | 195 | ||
SB 17 MX 112 - 200 x 20 | 130 | 80 | 2150 | 360 /100 |
SB 17 MX 112 - 225 x 20 | 150 | 105 | ||
SB 17 MX 112 - 250 x 20 | 170 | 130 | ||
SB 17 MX 112 - 280 x 20 | 195 | 160 | ||
SB 17 MX 112 - 315 x 20 | 225 | 195 | ||
SB 17 MX 113 - 250 x 20 | 250 | 130 | 3150 | 360 /100 |
SB 17 MX 113 - 280 x 20 | 285 | 160 | ||
SB 17 MX 113 - 315 x 20 | 330 | 195 | ||
SB 17 MX 113 - 355 x 20 | 375 | 235 | ||
SB 17 MX 113 - 400 x 20 | 435 | 280 | ||
SB 17 MX 133 - 280 x 20 | 375 | 160 | 4200 | 360 /100 |
SB 17 MX 133 - 315 x 20 | 440 | 195 | ||
SB 17 MX 133 - 355 x 20 | 500 | 235 | ||
SB 17 MX 133 - 400 x 20 | 580 | 280 | ||
SB 17 MX 133 - 450 x 20 | 665 | 330 | ||
SB 17 MX 133 - 500 x 20 | 750 | 380 |
You can buy Pintsch Bubenzer SB 17 MX disc brakes, find out the price and more information about the products by contacting our specialists.
