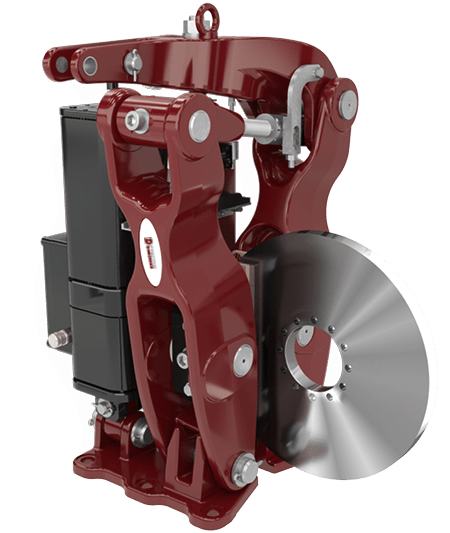

Disc brake systems Pintsch Bubenzer SB 28.3 /SB 23.3 with electrohydraulic drive BUEL They are high-performance and extremely reliable units to ensure safety in the operation of critical production processes. They are quite easy to maintain, have self-centering levers, mechanical wear is corrected using an automatic compensator.
Symmetrical design, limit switch release control, manual release lever. When uncoupling, a parallel air gap is formed in relation to the pads. Brake linings made of powder friction materials for high friction speeds. The fasteners of the structure are made of stainless steel.
A wide range of standard sizes, additional corrosion protection methods and optional accessories (wear control of the limit switch, monitoring systems, couplings and bushings for the brake disc, etc.) can also be applied on request.
Technical characteristics of Pintsch Bubenzer SB 28.3 /SB 23.3 disc brake systems
- Max. braking torque: 755 - 28800 Nm;
- Min. braking torque: 378 - 14400 Nm;
- Contact force: 6845 - 80,000 N;
- Drive power: 350 - 1250 Watts;
- Outer diameter of the brake disc: 355 - 1000 mm;
- The thickness of the brake disc: 30 mm.
Parameters of standard sizes of Pintsch Bubenzer SB 28.3 disc brakes
Type of brake system | Max. brake moment, Nm | Mines. brake moment, Nm | Contact information effort, N | Electro- hydraulic BUEL drive |
SB 28.3 - 450 x 30 - BL 125-6 | 3150 | 1575 | 22500 | Power 650 W, Current 1.4A (400 V) |
SB 28.3 - 500 x 30 - BL 125-6 | 3600 | 1800 | ||
SB 28.3 - 560 x 30 - BL 125-6 | 4140 | 2070 | ||
SB 28.3 - 630 x 30 - BL 125-6 | 4770 | 2385 | ||
SB 28.3 - 710 x 30 - BL 125-6 | 5490 | 2745 | ||
SB 28.3 - 800 x 30 - BL 125-6 | 6300 | 3150 | ||
SB 28.3 - 560 x 30 - BL 200-6 | 6440 | 3220 | 35000 | Power 800 W, Current 1.5A (400 V) |
SB 28.3 - 630 x 30 - BL 200-6 | 7420 | 3710 | ||
SB 28.3 - 710 x 30 - BL 200-6 | 8540 | 4270 | ||
SB 28.3 - 800 x 30 - BL 200-6 | 9800 | 4900 | ||
SB 28.3 - 630 x 30 - BL 300-6 | 10600 | 5830 | 50000 | Power 900 W, Current 1.6A (400 V) |
SB 28.3 - 710 x 30 - BL 300-6 | 12200 | 6710 | ||
SB 28.3 - 800 x 30 - BL 300-6 | 14000 | 7700 | ||
SB 28.3 - 900 x 30 - BL 300-6 | 16000 | 8800 | ||
SB 28.3 - 1000 x 30 - BL 300-6 | 18000 | 9900 | ||
SB 28.3 - 710 x 30 - BL 450-8 | 15860 | 7930 | 65000 | Power 1200 W, Current 2.0A (400 V) |
SB 28.3 - 800 x 30 - BL 450-8 | 18200 | 9100 | ||
SB 28.3 - 900 x 30 - BL 450-8 | 20800 | 10400 | ||
SB 28.3 - 1000 x 30 - BL 450-8 | 23400 | 11700 | ||
SB 28.3 - 710 x 30 - BL 550-8 | 19520 | 9760 | 80000 | Power 1250 W, Current 2.1A (400 V) |
SB 28.3 - 800 x 30 - BL 550-8 | 22400 | 11200 | ||
SB 28.3 - 900 x 30 - BL 550-8 | 25600 | 12800 | ||
SB 28.3 - 1000 x 30 - BL 550-8 | 28800 | 14400 |
Parameters of standard sizes of Pintsch Bubenzer SB 23.3 disc brakes
Type of brake system | Max. brake moment, Nm | Mines. brake moment, Nm | Contact information effort, N | Electro- hydraulic BUEL drive |
SB 23.3 - 355 x 30 - BL 35-5 | 755 | 378 | 6845 | Power 350 W, Current 0.6A (400 V) |
SB 23.3 - 400 x 30 - BL 35-5 | 875 | 438 | ||
SB 23.3 - 450 x 30 - BL 35-5 | 1015 | 508 | ||
SB 23.3 - 500 x 30 - BL 35-5 | 1150 | 575 | ||
SB 23.3 - 560 x 30 - BL 35-5 | 1315 | 658 | ||
SB 23.3 - 630 x 30 - BL 35-5 | 1505 | 753 | ||
SB 23.3 - 710 x 30 - BL 35-5 | 1725 | 863 | ||
SB 23.3 - 400 x 30 - BL 50-6 | 1375 | 825 | 10750 | Power 450 W, Current 0.7A (400 V) |
SB 23.3 - 450 x 30 - BL 50-6 | 1590 | 954 | ||
SB 23.3 - 500 x 30 - BL 50-6 | 1805 | 1083 | ||
SB 23.3 - 560 x 30 - BL 50-6 | 2065 | 1239 | ||
SB 23.3 - 630 x 30 - BL 50-6 | 2365 | 1419 | ||
SB 23.3 - 710 x 30 - BL 50-6 | 2710 | 1626 | ||
SB 23.3 - 400 x 30 - BL 80-6 | 2625 | 1313 | 20500 | Power 600 W, Current 1.3A (400 V) |
SB 23.3 - 450 x 30 - BL 80-6 | 3035 | 1518 | ||
SB 23.3 - 500 x 30 - BL 80-6 | 3445 | 1723 | ||
SB 23.3 - 560 x 30 - BL 80-6 | 3935 | 1968 | ||
SB 23.3 - 630 x 30 - BL 80-6 | 4510 | 2255 | ||
SB 23.3 - 710 x 30 - BL 80-6 | 5165 | 2583 |
To buy Pintsch Bubenzer SB 28.3 /SB 23.3 electrohydraulic disc brakes, you can find out the price and more information about the products by contacting our specialists.
