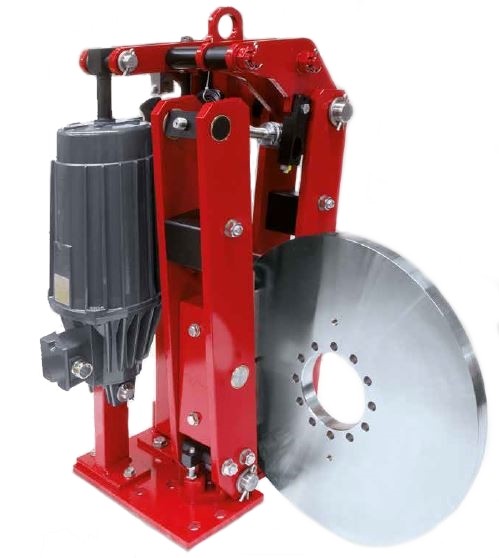

Compact disc brake systems SB 8 (Steel Mill) productions Pintsch Bubenzer In the version for use in metallurgy, electrohydraulic actuators are used for actuation. They are excellent for working at elevated temperatures, have wear-resistant pads, fasteners are made of stainless steel.
A wide range of models, the entire range of standard sizes is available in right- and left-hand versions. Optional accessories: dust-proof wear compensator, limit switch wear control, limit switch control (wear, unlocking, manual operation), manual lever with and without stop, monitoring systems, high-temperature cables, various dimensions and configurations of discs, couplings, bushings, etc.
Technical characteristics of Pintsch Bubenzer SB 8 industrial disc brakes (for metallurgy)
- Max. braking torque: 475 - 17540 Nm;
- Min. braking torque: 238 - 8770 Nm;
- Drive power: 200 - 550 Watts;
- Outer diameter of the brake disc: 355 - 1250 mm;
- The thickness of the brake disc: 30 mm.
Параметры типоразмеров дисковых тормозов Pintsch Bubenzer SB 8.1, SB 8.2, SB 8.3 (Steel Mill)
Type of brake system | Max. brake moment, Nm | Mines. brake moment, Nm | Contact information effort, N | Electro- hydraulic Ed drive |
SB 8.1 - 355x30 - 30/5 -R SB 8.1 - 355x30 - 30/5 -L | 475 | 238 | 4300 | Power 200 W, Current 0.5A (400 V)
|
SB 8.1 - 400x30 - 30/5 -R SB 8.1 - 400x30 - 30/5 -L | 550 | 275 | ||
SB 8.1 - 450x30 - 30/5 -R SB 8.1 - 450x30 - 30/5 -L | 635 | 318 | ||
SB 8.1 - 500x30 - 30/5 -R SB 8.1 - 500x30 - 30/5 -L | 720 | 360 | ||
SB 8.1 - 560x30 - 30/5 -R SB 8.1 - 560x30 - 30/5 -L | 825 | 413 | ||
SB 8.1 - 355x30 - 50/6 -R SB 8.1 - 355x30 - 50/6 -L | 845 | 423 | 7700 | Power 210 W, Current 0.5A (400 V) |
SB 8.1 - 400x30 - 50/6 -R SB 8.1 - 400x30 - 50/6 -L | 985 | 493 | ||
SB 8.1 - 450x30 - 50/6 -R SB 8.1 - 450x30 - 50/6 -L | 1140 | 570 | ||
SB 8.1 - 500x30 - 50/6 -R SB 8.1 - 500x30 - 50/6 -L | 1295 | 648 | ||
SB 8.1 - 560x30 - 50/6 -R SB 8.1 - 560x30 - 50/6 -L | 1480 | 740 | ||
SB 8.1 - 355x30 - 80/6 -R SB 8.1 - 355x30 - 80/6 -L | 1300 | 650 | 11800 | Power 330 W, Current 1.2A (400 V) |
SB 8.1 - 400x30 - 80/6 -R SB 8.1 - 400x30 - 80/6 -L | 1510 | 755 | ||
SB 8.1 - 450x30 - 80/6 -R SB 8.1 - 450x30 - 80/6 -L | 1745 | 873 | ||
SB 8.1 - 500x30 - 80/6 -R SB 8.1 - 500x30 - 80/6 -L | 1980 | 990 | ||
SB 8.1 - 560x30 - 80/6 -R SB 8.1 - 560x30 - 80/6 -L | 2265 | 1133 | ||
SB 8.2 - 450x30 - 50/6 -R SB 8.2 - 450x30 - 50/6 -L | 1015 | 660 | 7255 | Power 210 W, Current 0.5A (400 V) |
SB 8.2 - 500x30 - 50/6 -R SB 8.2 - 500x30 - 50/6 -L | 1160 | 754 | ||
SB 8.2 - 560x30 - 50/6 -R SB 8.2 - 560x30 - 50/6 -L | 1335 | 868 | ||
SB 8.2 - 630x30 - 50/6 -R SB 8.2 - 630x30 - 50/6 -L | 1540 | 1001 | ||
SB 8.2 - 710x30 - 50/6 -R SB 8.2 - 710x30 - 50/6 -L | 1770 | 1151 | ||
SB 8.2 - 450x30 - 80/6 -R SB 8.2 - 450x30 - 80/6 -L | 1580 | 869 | 11270 | Power 330 W, Current 1.2A (400 V) |
SB 8.2 - 500x30 - 80/6 -R SB 8.2 - 500x30 - 80/6 -L | 1805 | 993 | ||
SB 8.2 - 560x30 - 80/6 -R SB 8.2 - 560x30 - 80/6 -L | 2075 | 1141 | ||
SB 8.2 - 630x30 - 80/6 -R SB 8.2 - 630x30 - 80/6 -L | 2390 | 1315 | ||
SB 8.2 - 710x30 - 80/6 -R SB 8.2 - 710x30 - 80/6 -L | 2750 | 1513 | ||
SB 8.2 - 450x30 - 121/6 -R SB 8.2 - 450x30 - 121/6 -L | 2545 | 1273 | 18195 | Power 330 W, Current 1.2A (400 V) |
SB 8.2 - 500x30 - 121/6 -R SB 8.2 - 500x30 - 121/6 -L | 2910 | 1455 | ||
SB 8.2 - 560x30 - 121/6 -R SB 8.2 - 560x30 - 121/6 -L | 3350 | 1675 | ||
SB 8.2 - 630x30 - 121/6 -R SB 8.2 - 630x30 - 121/6 -L | 3855 | 1928 | ||
SB 8.2 - 710x30 - 121/6 -R SB 8.2 - 710x30 - 121/6 -L | 4440 | 2220 | ||
SB 8.2 - 450x30 - 201/6 -R SB 8.2 - 450x30 - 201/6 -L | 3925 | 1963 | 28030 | Power 450 W, Current 1.3A (400 V) |
SB 8.2 - 500x30 - 201/6 -R SB 8.2 - 500x30 - 201/6 -L | 4485 | 2243 | ||
SB 8.2 - 560x30 - 201/6 -R SB 8.2 - 560x30 - 201/6 -L | 5160 | 2580 | ||
SB 8.2 - 630x30 - 201/6 -R SB 8.2 - 630x30 - 201/6 -L | 5940 | 2970 | ||
SB 8.2 - 710x30 - 201/6 -R SB 8.2 - 710x30 - 201/6 -L | 6840 | 3420 | ||
SB 8.3 - 630x30 - 201/6 -R SB 8.3 - 630x30 - 201/6 -L | 5145 | 2573 | 25735 | Power 450 W, Current 1.3A (400 V) |
SB 8.3 - 710x30 - 201/6 -R SB 8.3 - 710x30 - 201/6 -L | 5970 | 2985 | ||
SB 8.3 - 800x30 - 201/6 -R SB 8.3 - 800x30 - 201/6 -L | 6895 | 3448 | ||
SB 8.3 - 900x30 - 201/6 -R SB 8.3 - 900x30 - 201/6 -L | 7925 | 3963 | ||
SB 8.3 - 1000x30 - 201/6 -R SB 8.3 - 1000x30 - 201/6 -L | 8955 | 4478 | ||
SB 8.3 - 1250x30 - 201/6 -R SB 8.3 - 1250x30 - 201/6 -L | 11530 | 5765 | ||
SB 8.3 - 630x30 - 301/6 -R SB 8.3 - 630x30 - 301/6 -L | 7830 | 3915 | 39150 | Power 550 W, Current 1.4A (400 V) |
SB 8.3 - 710x30 - 301/6 -R SB 8.3 - 710x30 - 301/6 -L | 9085 | 4543 | ||
SB 8.3 - 800x30 - 301/6 -R SB 8.3 - 800x30 - 301/6 -L | 10490 | 5245 | ||
SB 8.3 - 900x30 - 301/6 -R SB 8.3 - 900x30 - 301/6 -L | 12060 | 6030 | ||
SB 8.3 - 1000x30 - 301/6 -R SB 8.3 - 1000x30 - 301/6 -L | 13625 | 6813 | ||
SB 8.3 - 1250x30 - 301/6 -R SB 8.3 - 1250x30 - 301/6 -L | 17540 | 8770 |
You can buy disc brakes for metallurgy Pintsch Bubenzer SB 8, find out the price and more information about the products by contacting our specialists.
