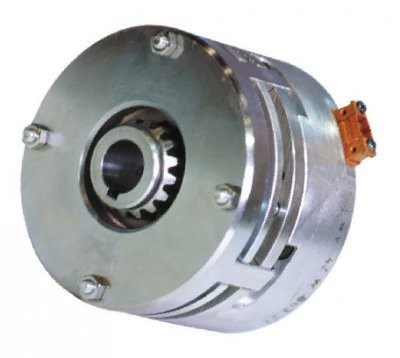

Electromagnetic brakes of the series EBB from the company PSP Pohony they have a two-disc structure of the active part, the surfaces of the plates are covered with friction pads. They are designed for drive units that require the rotating parts to stop when the power is turned off or to ensure safety. These brake blocks are very easy to install, set up and subsequent maintenance. In addition, they can function in fairly harsh climatic conditions.
This design is often used on board ships as part of winch drives, but is also used in the textile industry, the food industry, packaging plants and other industrial areas.
Technical characteristics of PSP Pohony EBB 5 disc electromagnetic brakes
- Braking torque: 50 Nm;
- Max. speed: 3000 rpm;
- Coil power: 41.7 W;
- Voltage: 24 V DC;
- Air gap: 0.3 mm;
- Outer diameter: 190 mm;
- Diameter of the sleeve: 22 mm;
- Operating temperature range: -25 … +50 °C.
You can buy PSP Pohony EBB disc electromagnetic brakes, find out the price and more information about the products by contacting our specialists.
