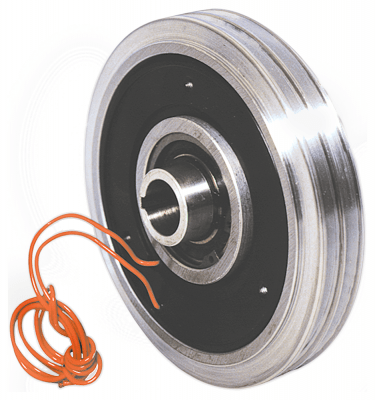

Disc couplings EKA productions PSP Pohony they have an electromagnetic drive, the transmission of torque is carried out by friction between the anchor plate and the magnet body in the absence of a gap between them and without the use of a friction lining. Fast overlap even when there is a discrepancy in the speeds of the leading and driven parts. Designed only for dry running, the maintenance-free design allows them to be installed in hard-to-reach places. In the inactive state, it works without wear and heating, simple assembly.
Popular areas for the application of this line are packaging machinery, food processing equipment, refrigeration compressors, fans, etc.
Technical characteristics of PSP Pohony EKA disc friction couplings
- Rated torque (dynamic): 12.5 - 100 Nm;
- Rated torque (static): 14.5 - 115 Nm;
- Max. speed: 2000 - 3000 rpm;
- Coil power: 19.2 - 38 Watts;
- Voltage: 24 V (DC);
- Outer diameter: 151.6 - 241 mm;
- Diameter of the sleeve: 15 - 40 mm.
Parameters of standard sizes of electromagnetic friction couplings PSP Pohony EKA
Type of coupling | Torque, Nm | Max. speed, rpm | Power coils, W | Diameter of the sleeve, mm | |
in dynamics | static | ||||
EKA 1,25 | 12,5 | 14,5 | 3000 | 19,2 | 15 - 20 |
EKA 2,5 | 25 | 30 | 3000 | 22,4 | 18 - 25 |
EKA 4 | 40 | 48 | 3000 | 25 | 20 - 30 |
EKA 6,3 | 63 | 73 | 2500 | 31,4 | 25 - 35 |
EKA 10 | 100 | 115 | 2000 | 38 | 28 - 40 |
You can buy PSP Pohony EKA disc electromagnetic clutches, find out the price and more information about the products by contacting our specialists.
