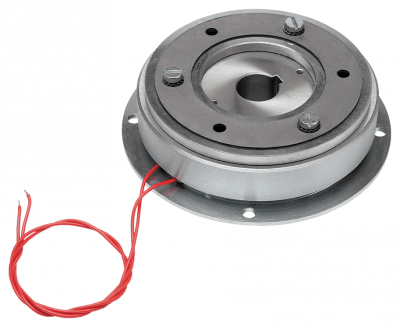

Disc couplings IT productions PSP Pohony they have an electromagnetic drive, the transmission of torque is carried out by friction of the contact parts using a friction lining (does not contain asbestos). This series is suitable for processes with high coupling frequency. The pre-adjustment of the air gap is not carried out and must be compensated for by other parts of the drive unit. Flange mounting on a fixed piece of equipment using four holes.
Fast overlap even when there is a discrepancy in the speeds of the leading and driven parts. Designed only for dry running, the maintenance-free design allows them to be installed in hard-to-reach places. In the inactive state, it works without wear and heating, simple assembly.
Popular areas for the application of this line are packaging machinery, food processing equipment, textile installations and other specialized machines.
Technical characteristics of PSP Pohony EKS disc friction couplings
- Rated torque (dynamic): 60 - 250 Nm;
- Rated torque (static): 36 - 290 Nm;
- Max. speed: 1800 - 3000 rpm;
- Coil power: 28.2 - 62.6 W;
- Voltage: 24 V (DC);
- Outer diameter: 125 - 235 mm;
- Diameter of the sleeve: 15 - 55 mm.
Parameters of standard sizes of electromagnetic friction couplings PSP Pohony EKS
Type of coupling | Rated torque, Nm | Max. speed, rpm | Power atushki, W | Diameter of the sleeve, mm | |
in dynamics | static | ||||
Ex 3 | 30 | 36 | 3000 | 28,2 | 15 - 26 |
Ex 4 | 40 | 48 | 3000 | 29,7 | 19 - 28 |
Ex 6.3 | 63 | 75 | 3000 | 39,1 | 22 - 35 |
Ex 10 | 100 | 120 | 2600 | 46,0 | 25 - 42 |
Ex 16 | 160 | 185 | 2200 | 56,9 | 30 - 48 |
Ex 25 | 250 | 290 | 1800 | 62,6 | 32 - 55 |
You can buy PSP Pohony EKS disc electromagnetic clutches, find out the price and more information about the products by contacting our specialists.
