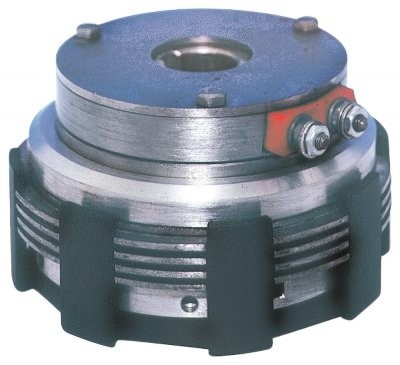

Multi-disc friction clutches She from the company PSP Pohony they have an electromagnetic drive, the transmission of torque is carried out by compressing the built-in plates with a friction lining (a package of external and internal disks), without rings. Depending on the requirements of the process, work can be carried out both in a dry environment and in the presence of lubricants.
The couplings are very easy to set up, the aluminum adjusting nut has 24 gaps for the spring-loaded ball, which snap in both directions when pressed (the gap change step is 0.0625 mm).
Popular areas for the application of this series are packaging machinery, food processing equipment, textile installations and other general industrial and profile machines.
Technical characteristics of PSP Pohony ELA multi-disc friction clutches
- Rated torque (dynamic): 10 - 630 Nm;
- Rated torque (static): 14 - 900 Nm;
- Max. speed: 1750 - 3000 rpm;
- Coil power: 25.2 - 78 Watts;
- Voltage: 24 V (DC);
- Air gap (lubricated/dry): 0.3 - 0.45 mm /0.6 - 0.9 mm;
- Outer diameter: 100 - 235 mm;
- Diameter of the sleeve: 15 - 70 mm.
Parameters of standard sizes of electromagnetic friction couplings PSP Pohony ELA
Type of coupling | Rated torque, Nm | Max. speed, rpm | Power coils, W | Diameter of the sleeve, mm | |
in dynamics | static | ||||
She 1 | 10 | 14 | 3000 | 25,2 | 15 - 20 |
She 2 | 20 | 28 | 3000 | 28,8 | 18 - 25 |
She 4 | 40 | 56 | 3000 | 30 | 20 - 30 |
She 6.3 | 63 | 90 | 3000 | 33,6 | 25 - 35 |
She 10 | 100 | 140 | 3000 | 39,6 | 28 - 40 |
She 16 | 160 | 225 | 2500 | 44,4 | 30 - 45 |
She 25 | 250 | 355 | 2200 | 60 | 40 - 55 |
She 40 | 400 | 560 | 2000 | 72 | 45 - 60 |
She 63 | 630 | 900 | 1750 | 78 | 50 - 70 |
You can buy multi-disc electromagnetic couplings PSP Pohony ELA, find out the price and more information about the products by contacting our specialists.
