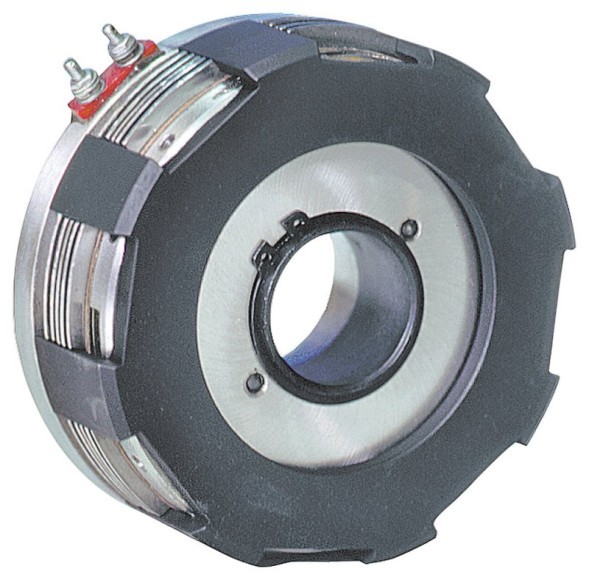

Multi-disc brakes of the series EFA from the company PSP Pohony they are powered by an electromagnetic drive. The package of friction discs is compressed during activation and, using friction, transmits braking torque to the drive axles. Compact size, precise transmission and high level of performance. The inner discs are covered with a layer of special friction material, depending on the type of medium used (dry running or in the presence of lubrication).
The air gap is adjusted using an adjustment nut, this indicator affects the amount of torque. To obtain more accurate parameters, special measuring devices are used, which are installed in a recess on the nut body.
Technical characteristics of electromagnetic brakes PSP Pohony ELB
- Braking torque (dynamos /static.): 6.3 - 630 Nm /9 - 900 Nm;
- Max. speed: 1750 - 3000 rpm;
- Coil power: 18 - 69.6 W;
- Voltage: 24 V DC;
- Air gap: 0.3 - 0.5 mm;
- Outer diameter: 90 - 235 mm;
- Diameter of the sleeve: 18 - 73 mm.
Parameters of standard sizes of electromagnetic brakes PSP Pohony ELB
Type of brake | Braking torque, Nm (dinam. /static.) | Max. speed, rpm | Power coils, W | Diameter bushings, mm |
ELB 0.6 | 6,3 /9 | 3000 | 18 | 18 |
ELB 1,2 | 12 /18 | 3000 | 25,2 | 22 |
ELB 2,5 | 25 /35,5 | 3000 | 28,8 | 28 |
ELB 4 | 40 /56 | 3000 | 30 | 32 |
ELB 6,3 | 63 /90 | 3000 | 33,6 | 36 |
ELB 10 | 100 /140 | 3000 | 39,6 | 42 |
ELB 16 | 160 /224 | 2500 | 44,4 | 46 |
ELB 25 | 250 /355 | 2200 | 60 | 56 |
ELB 40 | 400 /560 | 2000 | 59 | 63 |
ELB 63 | 630 /900 | 1750 | 69,6 | 73 |
You can buy PSP Pohony ELB multi-disc electromagnetic brakes, find out the price and more information about the products by contacting our specialists.
