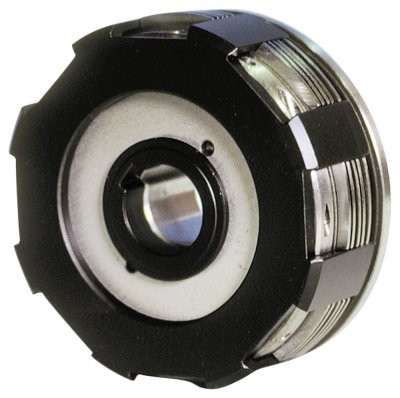

Multi-disc friction clutches ELS from the company PSP Pohony they have an electromagnetic drive, torque transmission is carried out by compressing the built-in external and internal plates, internal discs have friction pads, one contact ring. Depending on the requirements of the process, work can be carried out both in a dry environment and in the presence of lubricants.
The air gap is adjusted using a special nut screwed onto the anchor plate and holding the disc package, special measuring devices connected to the adjusting nut are used for more precise adjustment.
Popular areas for the application of this series are packaging machinery, food processing equipment, textile installations and other general industrial and profile machines.
Technical characteristics of PSP Pohony ELS multi-disc friction clutches
- Rated torque (dynamic): 6.3 - 630 Nm;
- Rated torque (static): 9 - 900 Nm;
- Max. speed: 1750 - 3000 rpm;
- Coil power: 18 - 69.6 W;
- Voltage: 24 V (DC);
- Air gap (lubricated/dry): 0.3 - 0.5 mm;
- Outer diameter: 90 - 235 mm;
- Diameter of the sleeve: 15 - 70 mm.
Parameters of standard sizes of electromagnetic friction couplings PSP Pohony ELS
Type of coupling | Rated torque, Nm | Max. speed, rpm | Power coils, W | Diameter of the sleeve, mm | |
in dynamics | static | ||||
The 0.6 | 6,3 | 9,0 | 3000 | 18 | 15 - 17 |
The 1.2 | 12 | 18 | 3000 | 25,2 | 15 - 20 |
The 2.5 | 25 | 35,5 | 3000 | 28,8 | 18 - 25 |
The 4 | 40 | 56 | 3000 | 30 | 20 - 30 |
The 6.3 | 63 | 90 | 3000 | 33,6 | 25 - 35 |
The 10 | 100 | 140 | 3000 | 39,6 | 28 - 40 |
The 16 | 160 | 225 | 2500 | 44,4 | 30 - 45 |
The 25 | 250 | 355 | 2200 | 60 | 40 - 55 |
The 40 | 400 | 560 | 2000 | 59 | 45 - 60 |
The 63 | 630 | 900 | 1750 | 69,6 | 50 - 70 |
You can buy multi-disc electromagnetic couplings PSP Pohony ELS, find out the price and more information about the products by contacting our specialists.
