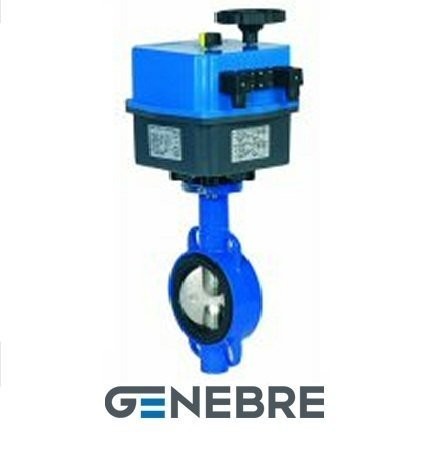

Features of the GENEBRE 5633 electric rotary butterfly valve:
- the body material is cast iron with epoxy coating;
- the material of the rotary disc is galvanized cast iron;
- the seal material is EPDN (vulcanized ethylene propylene diene rubber);
- the flanged connection reduces the dimensions of the device and the load on the pipe;
- guaranteed tightness;
- flange diameter – from 50 to 200 mm;
- the possibility of installing a gearbox, pneumatic and electric drive with a flange diameter of 300 mm;
- The maximum permissible nominal pressure is 16 atm;
- the maximum temperature of the conducted medium is 120 degrees Celsius;
- easy to repair (does not require special equipment and maintenance);
- the conducted medium is carbon mixtures, glycols, oil, industrial and salt water, chemically aggressive substances;
- manufacturer – GENEBRE (Spain)
Features
Joining:
межфланцевый
Housing material
чугунный
Brand
Genebre
