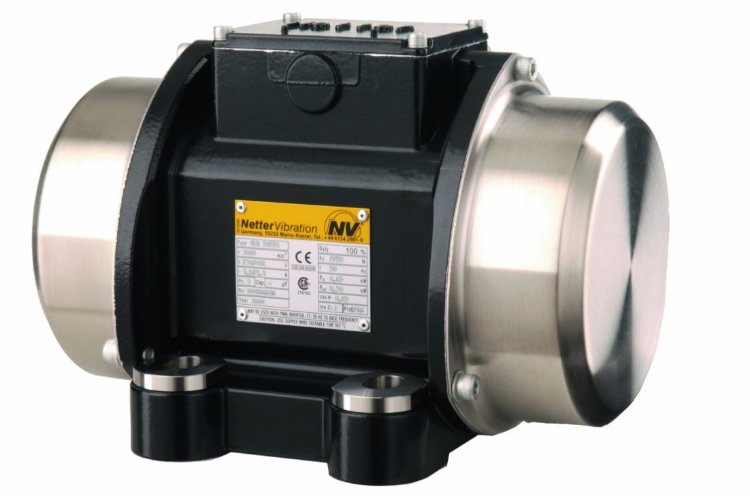

NEG16190 Pad Vibrator

The NetterVibration electric vibrators of the NEG series are three-phase motors with eccentric loads that create vibrations. Vibrators operate at a frequency of 50 or 60 Hz, a voltage of 230 or 400 V, and speeds from 750 to 3000 rpm. At 60 Hz, the speed is 20% higher.

Electric vibrators are used as actuators to seal concrete and prevent components from sticking. The lack of maintenance requirements allows the equipment to be used in the most difficult environmental conditions. Rolling bearings provide a guarantee of safety. The terminal box is built into the housing, the covers are made of steel, the degree of protection is IP66-7, for standard sizes 50 and 60 – IP65. Explosion-proof versions of vibrators and stainless steel are available if necessary.

Connection 230/400 V 50/60 Hz
Built-In Terminal Box
Maintenance-Free Operation
Smooth Surface Of The Case,
Stainless Steel-Unwuchtabdeckungen
Directional circular vibration
Degree of protection IP 66-7, Iso class F
ATEX - stainless steel version available

Areas of application

As a drive for Förderrinnen and a sieve
Solve Produktstaus
The problem of sticking
For concrete compaction

TECHNICAL CHARACTERISTICS OF NETTERVIBRATION NEG SERIES ELECTRIC VIBRATORS:

Rated frequency: from 750 to 6000 rpm
Centrifugal(driving) force: from 40 to 217749 N
Working torque: 0.4-3100 cm*kg
Rated power: 0.035-13 kW
Rated current: 0.15 to 26.5A

STANDARD SIZES OF NETTERVIBRATION NEG SERIES ELECTRIC VIBRATORS (AT 3600-3000 RPM, 50 HZ):

Standard size	*Working torque, cmkg**	Driving force, N	Power, kW	Current, A
NEG 5020*	0,4	197	0,035	0,15
NEG 5050*	1	494	0,045	0,16
NEG 5060	1,2	592	0,12	0,27
NEG 50120	2,4	1185	0,18	0,35
NEG 50200	4	1974	0,18	0,35
NEG 50300	6	2961	0,26	0,6
NEG 50550	11,5	5676	0,45	0,8
NEG 50770	14,7	7255	0,65	1,1
NEG 501140	22,4	11056	1	1,75
NEG 501540	31	15300	1,4	2,3
NEG 501800	36	17768	2	3,3
NEG 502020	41	20236	2,2	3,5
NEG 502270	46	22,704	2,2	3,5
NEG 503400	66	32575	4	6,2
NEG 503820	77	38004	4	6,5
NEG 506220	126	62189	5,5	9,2
NEG 508830	179	88347	10	18

STANDARD SIZES OF NETTERVIBRATION NEG SERIES ELECTRIC VIBRATORS (AT 1500 RPM, 50 HZ):

Standard size	*Working torque, cmkg**	Driving force, N	Power, kW	Current, A
NEG 2530	2,4	296	0,085	0,21
NEG 2570	6,4	790	0,085	0,21
NEG 25210	16,8	2073	0,17	0,41
NEG 25420	32,6	4023	0,3	0,6
NEG 25540	43,8	5404	0,3	0,6
NEG 25700	57,2	7058	0,525	0,92
NEG 25930	75	9254	0,55	0,95
NEG 251410	112	13820	0,9	1,45
NEG 251800	143	17645	1,1	2
NEG 252060	163	20113	1,35	2,5
NEG 252370	192	23691	1,6	3,2
NEG 253050	247	30477	1,9	3,8
NEG 253720	302	37264	2,2	3,9
NEG 254310	349	43063	2,5	4,8
NEG 254900	397	48986	3,6	6
NEG 256460	524	64656	6	10,5
NEG 258040	652	80450	7	11,6
NEG 258260	669	82548	7,5	12,2
NEG 2511210	909	112162	10	17,5
NEG 2513850	1223	138567	11	20

STANDARD SIZES OF NETTERVIBRATION NEG SERIES ELECTRIC VIBRATORS (AT 1200-1000 RPM, 50 HZ):

Standard size	Working torque, cm*kg	Driving force, N	Power, kW	Current, A
NEG 1630	6	329	0,12	0,3
NEG 1690	16,8	921	0,12	0,3
NEG 16190	32,6	1788	0,185	0,5
NEG 16310	57,2	3137	0,35	0,72
NEG 16410	75	4113	0,35	0,75
NEG 16810	144	7897	0,68	1,4
NEG 161130	202	11078	0,75	1,7
NEG 161420	254	13929	0,95	1,8
NEG 161610	293	16068	1,1	2,2
NEG 162110	385	21113	1,5	3
NEG 162550	464	25446	1,96	4,1
NEG 163030	553	30327	2,2	4,5
NEG 163820	696	38169	2,5	5,1
NEG 164700	857	46998	3,2	6,5
NEG 165190	946	51879	3,8	7
NEG 165580	1009	55334	3,8	7
NEG 166270	1143	62682	4,3	8,2
NEG 166670	1217	66740	5	10
NEG 167890	1439	78915	7	12,6
NEG 168500	1550	85002	7,5	14
NEG 169510	1735	95147	7,6	13,5
NEG 1612060	2199	120593	9	16,3
NEG 1613890	2532	138855	10,6	19
NEG 1617000	3100	170004	13	24,5

STANDARD SIZES OF NETTERVIBRATION NEG SERIES ELECTRIC VIBRATORS (AT 750 RPM, 50 HZ):

Standard size	Working torque, cm*kg	Driving force, N	Power, kW	Current, A
NEG 12100	32,6	1006	0,23	0,85
NEG 12180	56,8	1752	0,35	1,1
NEG 12230	75	2314	0,38	0,81
NEG 12460	144	4442	0,4	1,2
NEG 12640	202	6231	0,4	1,4
NEG 12900	293	9038	0,95	2,2
NEG 121430	464	14313	1,5	4,1
NEG 122150	696	21470	2	5,4
NEG 122640	857	26436	2,5	6
NEG 122920	964	29737	2,8	6,5
NEG 123530	1143	35259	4	8,2
NEG 124440	1439	44390	4,9	9,9
NEG 127640	2478	76440	6,8	13,2
NEG 128520	2763	85232	7,6	14
NEG 1211070	3589	110712	9,2	21
NEG 1213160	4267	131626	10,4	22
NEG 1217670	5727	176664	12,5	26,5

Features

Working moment, cmkg

32,6

Centrifugal force, kN

2,33

Power, kW:

0,18

Rotation speed, rpm

1000

Power Supply, In

~ 400V AC

Dimensions, mm

100-105x180-140

Weight, kg

20,5

Brand

Netter

overall rating
