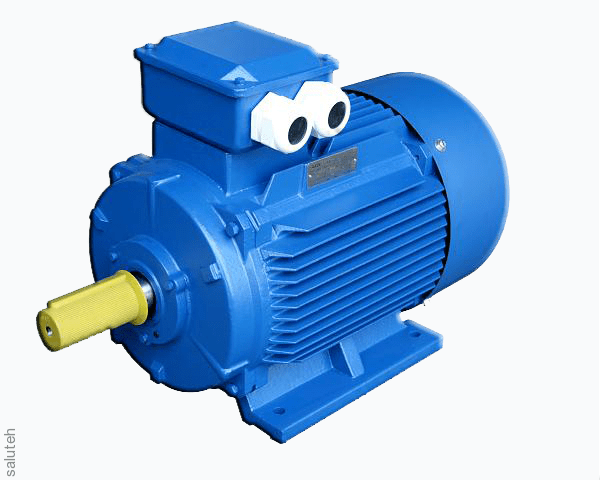

Electric motor (1081 paws) Air 100 L 1.5 kW 700 rpm 30kg

The AIR 100 asynchronous 3-phase motor model is designed for wide operation on various types of industrial equipment that is connected to an alternating current network with a frequency of 50 Hz.

Internal structure
This engine model has a classic structure with a fixed body stator and a rotor rotating inside. The stator winding is laid in special slots in the engine housing, the phases of which can be connected in the form of a "triangle" or "star".
The speed of rotation of the rotor is one of the most important indicators of the unit's performance and directly depends on the number of poles, the number of which varies from 1 to 3 pairs in different modifications. The entire inner filling is placed in a cast iron housing.

Features of the electric motor
The AIR 100 model is designed to operate in S1 mode, which assumes long-term operation without switching off. This factor must be taken into account for optimal and reliable use of the motor, since frequent inclusions create an abrupt moment of increasing current in the winding of the unit, which is several times higher than the average operating current, which leads to significant overload of the networks.
The electric motor has a simple design, easy start-up and affordable automation debugging. Its advantages include resistance to short-term mechanical overloads, effective resistance to the influence of dust and moisture according to the IP55 certificate.
High-precision fitting of components allowed to increase efficiency on this model up to 75%, and the use of high-quality bearings allowed to reduce noise to 55dB. Also, the engine is characterized by speed stability under different loads.

Available modifications
The AIR 100 series of electric motors is represented by 6 models: AIR 100L2, AIR 100L4, AIR 100L6, AIR 100L8, AIR 100S2 and AIR S4, you can buy any version, which are widely used as drives for various technological equipment, the power of which does not exceed 4 kW. They are powered by an electric network of 380 V and a network of 220/380 V. There is a special terminal box for connection to, which, depending on the design, can have 3 or 6 terminals. The three-phase stator winding can be switched on to a "star" or "triangle", which makes it possible to supply power from different voltages.

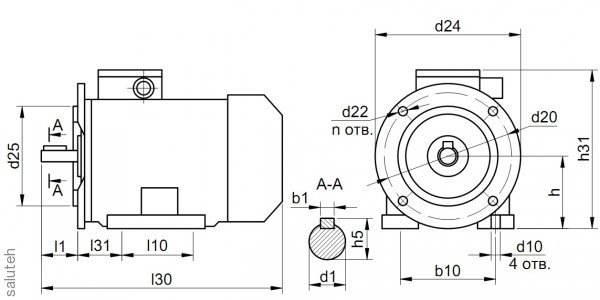

All engines received an external casing with dimensions of 271x160x142mm, which allow them to be installed in any accessible places. For installation, the manufacturer provides different options in each model with paws, paws and a flange, as well as one flange.
