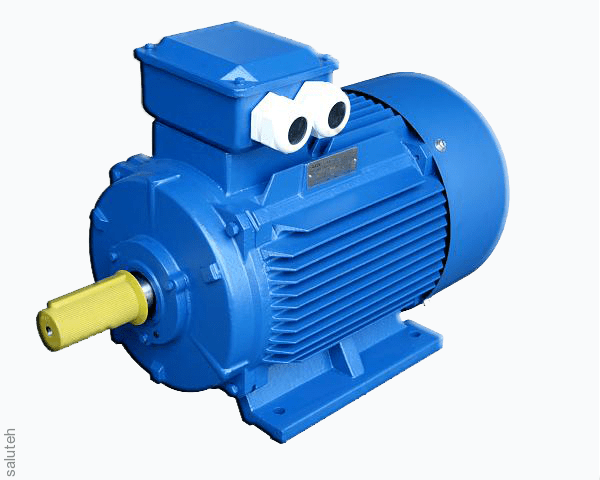

Electric motor (2081 kombi) AIR 100 L 5.5 kW 2880 rpm 35kg

The AIR 100 asynchronous 3-phase motor model is designed for wide operation on various types of industrial equipment that is connected to an alternating current network with a frequency of 50 Hz.

Internal structure
This engine model has a classic structure with a fixed body stator and a rotor rotating inside. The stator winding is laid in special slots in the engine housing, the phases of which can be connected in the form of a "triangle" or "star".
The speed of rotation of the rotor is one of the most important indicators of the unit's performance and directly depends on the number of poles, the number of which varies from 1 to 3 pairs in different modifications. The entire inner filling is placed in a cast iron housing.

Features of the electric motor
The AIR 100 model is designed to operate in S1 mode, which assumes long-term operation without switching off. This factor must be taken into account for optimal and reliable use of the engine, since the hour
