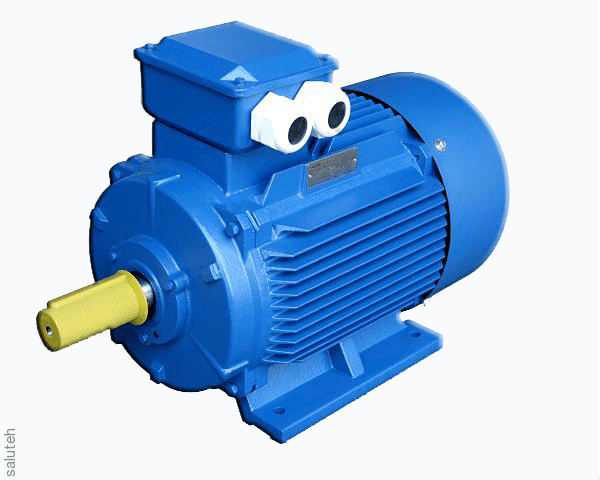

Electric motor (2081 kombi) AIR pressure 132 M 11 kW 2920 rpm 72kg

The widespread use of asynchronous AIR 132 electric motors is explained by its proven reliability, simplicity of design and a variety of modifications with different power characteristics. These models can be found in all industries, agriculture, utilities, etc.

Structure of the AIR 132 electric motor
The AIR 132 is an industrial AC electric motor connected to a three-phase network. Asynchronous electric motors of this type can be produced in a light duralumin shell or in heavier flanged and combined versions.
The internal structure of the unit is represented by a rotor, which is directly involved in rotation, and a stator, in the form of a fixed motor housing with special niches, where the stator winding is laid in coils. The connection of the phases of the stator winding inside the motor can be realized in the form of a "triangle" or "star". An electric current is applied to these windings, which creates a torque
