Series DC electric motors GH productions Ansaldo Sistemi Industriali They are built in accordance with IEC standards and are characterized by high efficiency of conducting production processes with variable speed. Excellent performance of the dynamics of work, exceptional reliability and flexibility of design. Thanks to the modular architecture principle, they are easy to adapt and maintain in specific application conditions.
Four-pole electric motors of standard size GH 200 M they are available in versions with and without compensating winding. A wide range of possible variations of cooling systems for heat dissipation, dust and water protection levels (splash-proof and closed configurations) and mounting elements are available. Laminated stator, support units are designed for increased loads, radial brush holders with constant pressure springs.

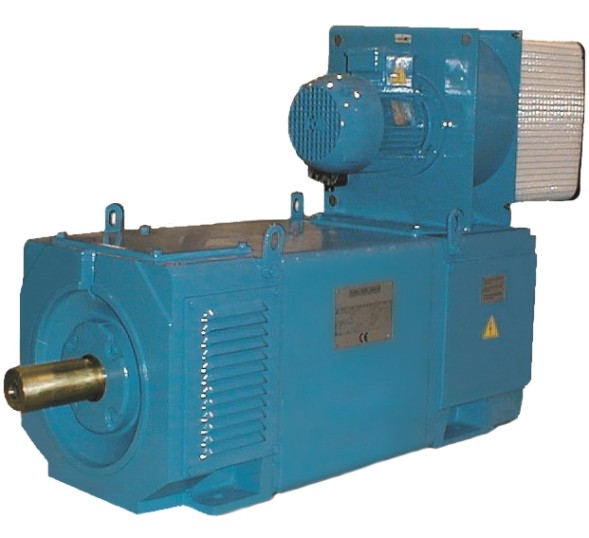

Technical characteristics of Ansaldo GH 200 M /GH 200 MK DC electric motors (with compensating winding)
- Rated power: 125 kW;
- Rated torque: 796 Nm;
- Supply voltage: 220 - 400 V;
- Maximum speed: up to 3200 rpm;
- Overall height: 200 mm;
- Insulation class: H;
- The degree of protection of the case: IP23, IP44, IP54, IP55;
- Cooling methods: IC06, IC16, IC17, IC36, IC37, IC410, IC610, IC666, IC86W;
- Mounting design: IM B3, IM B5, IM V1, IM V3 and their derivatives.
You can buy Ansaldo GH 200 M DC motors, find out the price and more information about the product by contacting our specialists.
