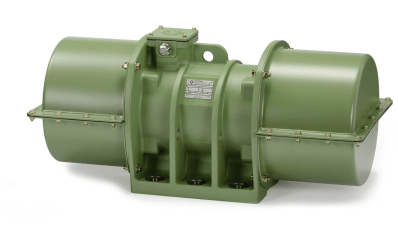

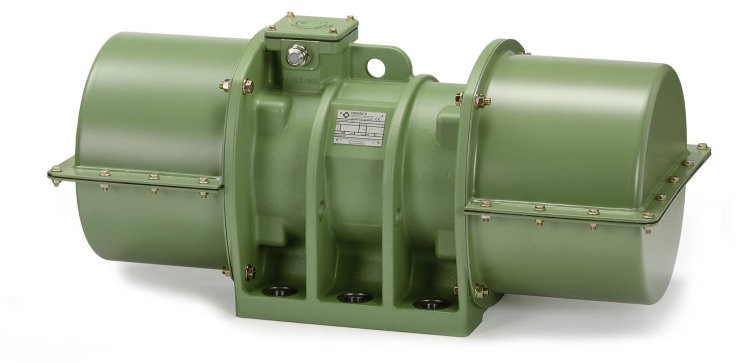

Vibration motors Frederick series FHG with a flange, they are protected from water and dust due to a special rubber gasket and a silicone O-ring. Detachable covers provide easy access to adjust the engine and are available in coated metal or stainless steel. The body coating complies with the RAL 6011 standard. Vibration motors can have either one or two detachable covers.
Special versions made of cold-resistant steel up to -65 °C are available on request. The vibrators are connected using a flexible cable for high mechanical loads, for example, H07RN-F or A07RN-F according to DIN VDE 0282.Vibrators have roller bearings with high load capacity and long service life, lubricated with a special lubricant. The lubricant is designed for the entire service life. High-performance vibrators with a closed body are resistant to vibration.
Technical characteristics of Friedrich vibrators of the FHG series
