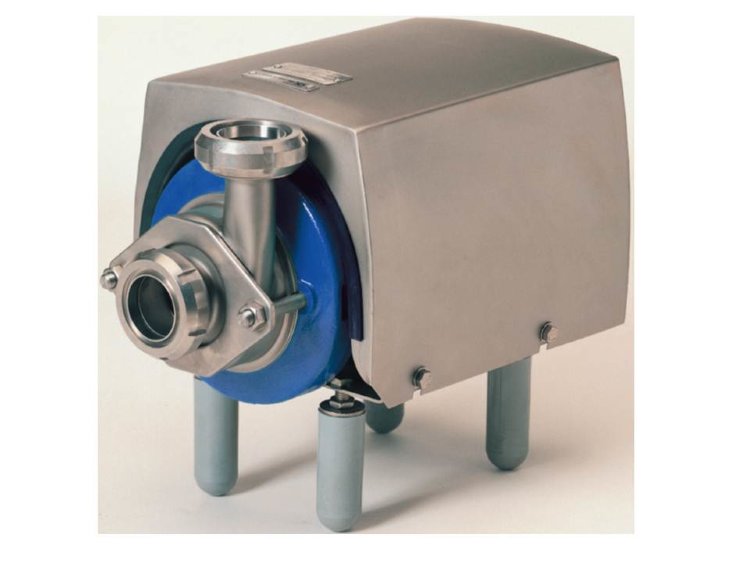

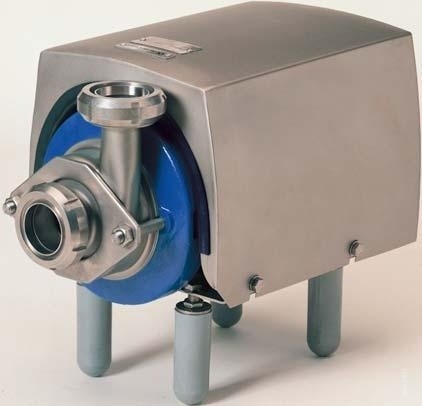

Alva laval centrifugal pumps of the FM-OS series

All parts in contact with the product - the pump body, impeller and pump shaft - are made of acid-resistant stainless steel 1.4404 (316L). The screws, staples and nuts are made of 1.4301 (304) stainless steel. The seals are made of nitrile (NBR).

Engine

• A standard electric motor attached to the base by means of a flange, in accordance with the IEC metric standard 2 poles=3000/3600 rpm at 50/60 Hz IP55 (with a drain hole with a labyrinth plug), insulation class F.
• The size of the electric motor is 50 Hz: . . . . . . . . . . . . . . . . . . . . . . . 1,1 kW
• 60 Гц: . . . . . . . . . . . . . . . . . . . . . . . 1,3 кВт

The FM-OS centrifugal pump is designed for use in food, pharmaceutical, chemical and other industries where acid-resistant steel resists injected products.
