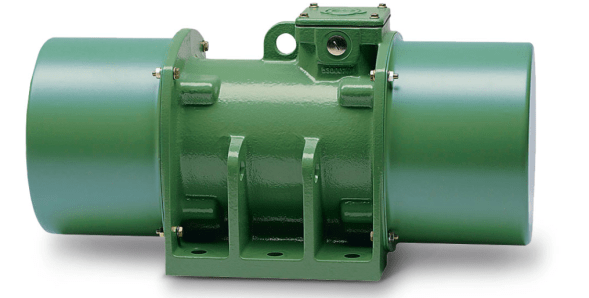

FRIEDRICH vibration motors with steel body FD-Type
When using FRIEDRICH vibration motors with a steel bearing cover, a special steel cover is used instead of the usual durable cover. This special version is especially suitable for heavy loads in z conveyor chutes. As proven by foundries, quarries, or processing plants.
Otherwise, these motors meet the general requirements of standard FRIEDRICH vibration motors.
General technical conditions
Power supply:Voltage from 115 V to 690 V is available in 50 Hz and 60 Hz.
Protection:IP 66
Thermal class:F (155 ° C) according to DIN EN 60034-1
Tropical isolation:standard
Electrical connection:Use a highly flexible cable for heavy mechanical loads. For example: H07RN-F or A07RN-F according to DIN VDE 0282.
Permissible ambient temperature:-20 to +40 ° C.
Special versions with cold steel up to -65 °C are available on request.
Operating mode:Continuous operation (S1) and intermittent operation at 100% centrifugal force.
Hood:Hoods made of deep sheet metal or stainless steel provide ideal protection against dust and water ingress due to a special shape and silicone seal.
montage:It can be mounted in any position without restrictions.
Coating color:The standard in RAL 6011. Other colors are available on request.
Type of code:
The type code is read as follows:
The first block number=operating torque in kgf
(Operating torque=2 x static torque)
This is followed by a hyphen followed by the pole number.
(4=1460 min-1, 6=980 min-1 (at a network frequency of 50 Hz)).
The size is indicated after the second hyphen.
